标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|

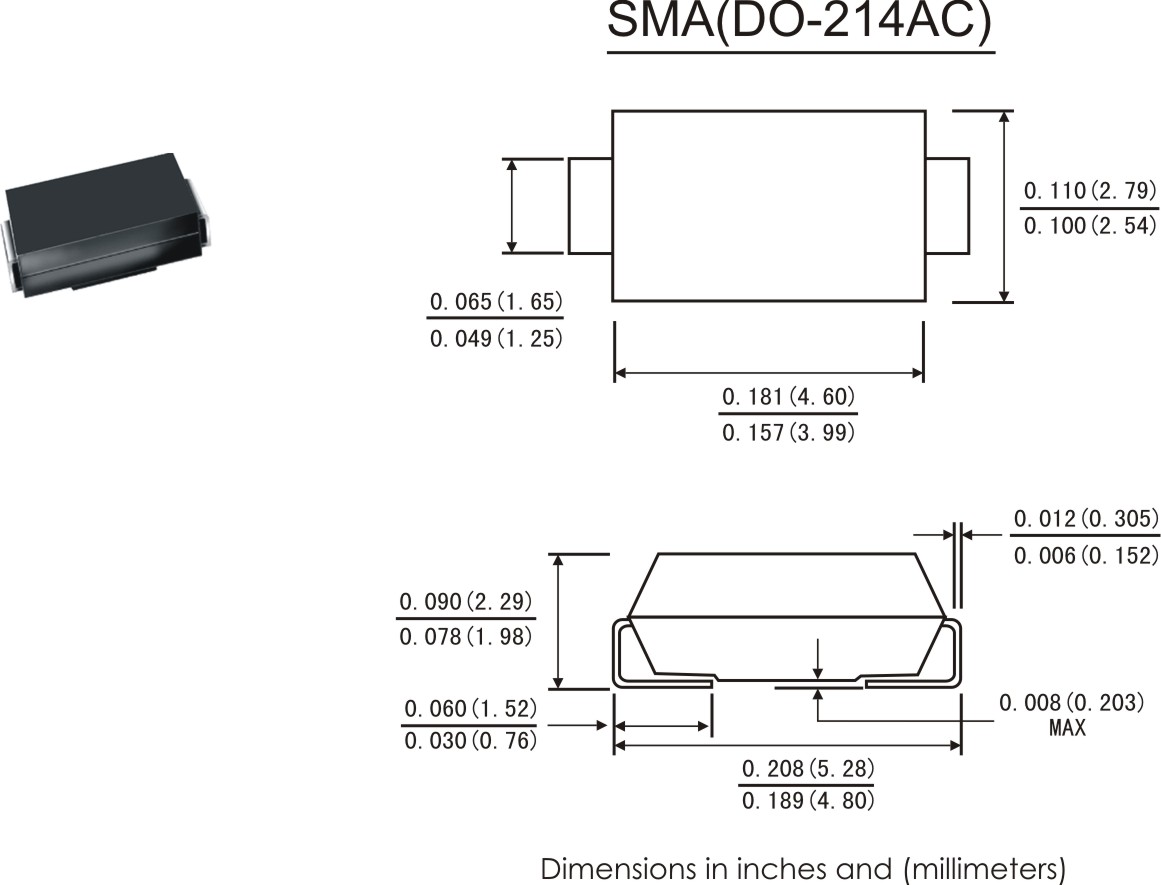

| SS220L | 下载 | 2.0 | 200 | 50 | 0.85 | 2.0 | 10 | SMA(DO-214AC) | |
| ABS206L | 下载 | 2.0 | 600 | 75 | 0.98 | 2.0 | 10 | ABS | |

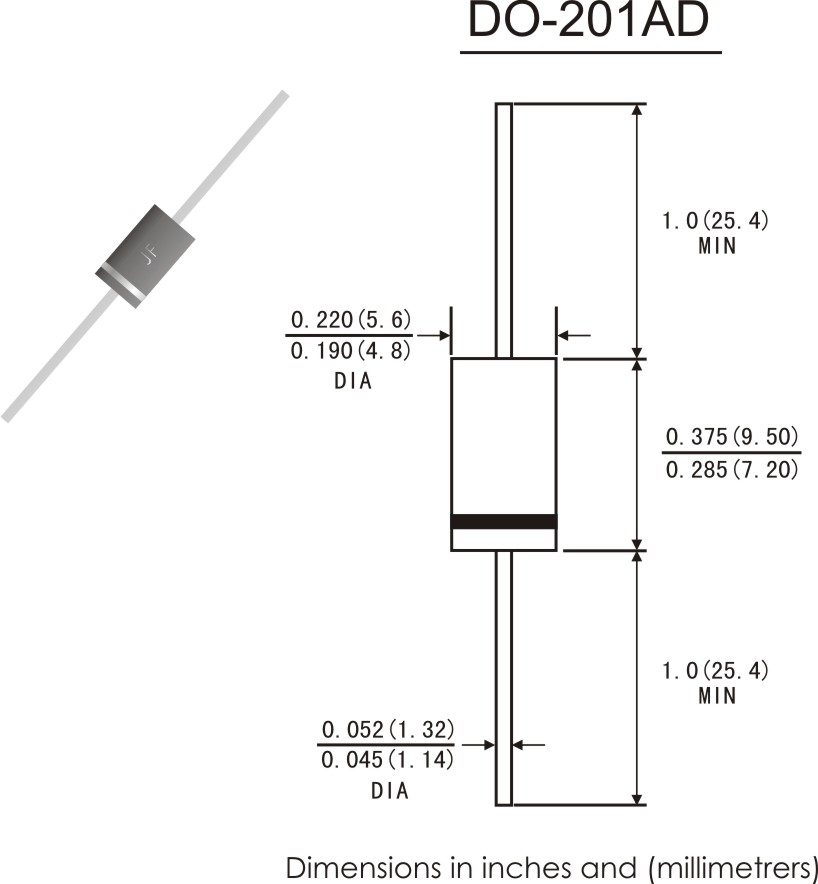

| SR340L | 下载 | 3.0 | 40 | 80 | 0.47 | 3.0 | 200 | DO-201AD | |

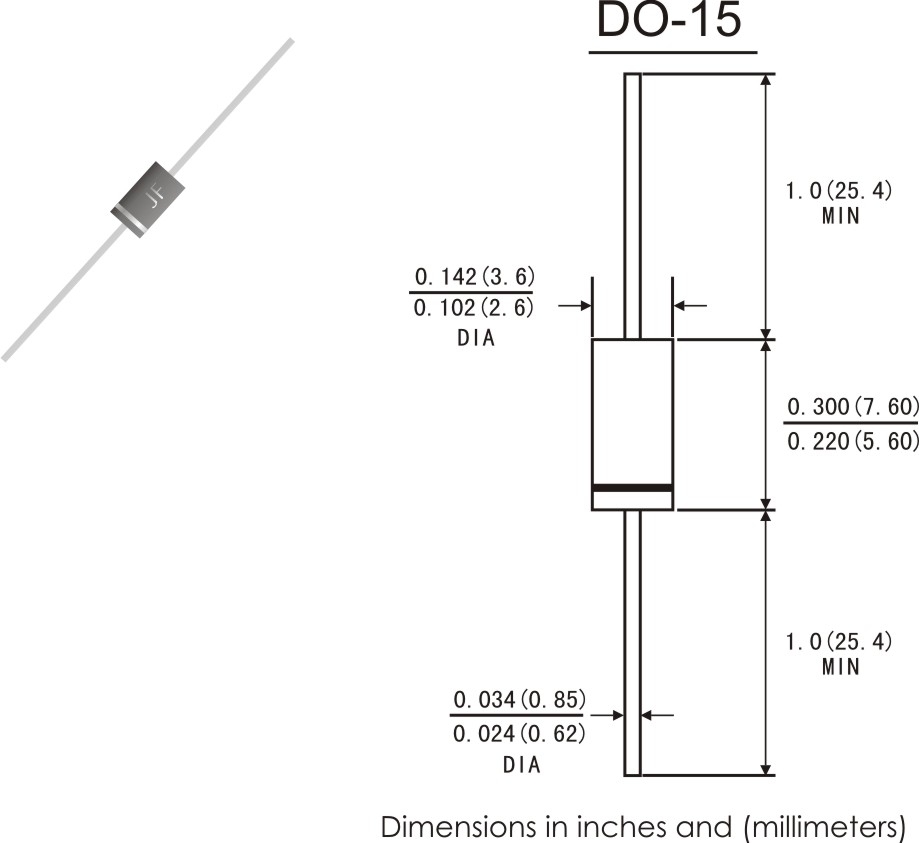

| SR340L | 下载 | 3.0 | 40 | 80 | 0.47 | 3.0 | 200 | DO-15 | |
| SR340SL | 下载 | 3.0 | 40 | 80 | 0.43 | 3.0 | 200 | DO-201AD | |
| SR345SL | 下载 | 3.0 | 45 | 80 | 0.43 | 3.0 | 200 | DO-201AD | |
| SR340SL | 下载 | 3.0 | 40 | 80 | 0.43 | 3.0 | 200 | DO-15 | |
| SR345SL | 下载 | 3.0 | 45 | 80 | 0.43 | 3.0 | 200 | DO-15 | |
| SS34L | 下载 | 3.0 | 40 | 80 | 0.47 | 3.0 | 200 | SMA(DO-214AC) | |
| SS34LH | 下载 | 3.0 | 40 | 80 | 0.47 | 3.0 | 200 | SMA(DO-214AC) | |

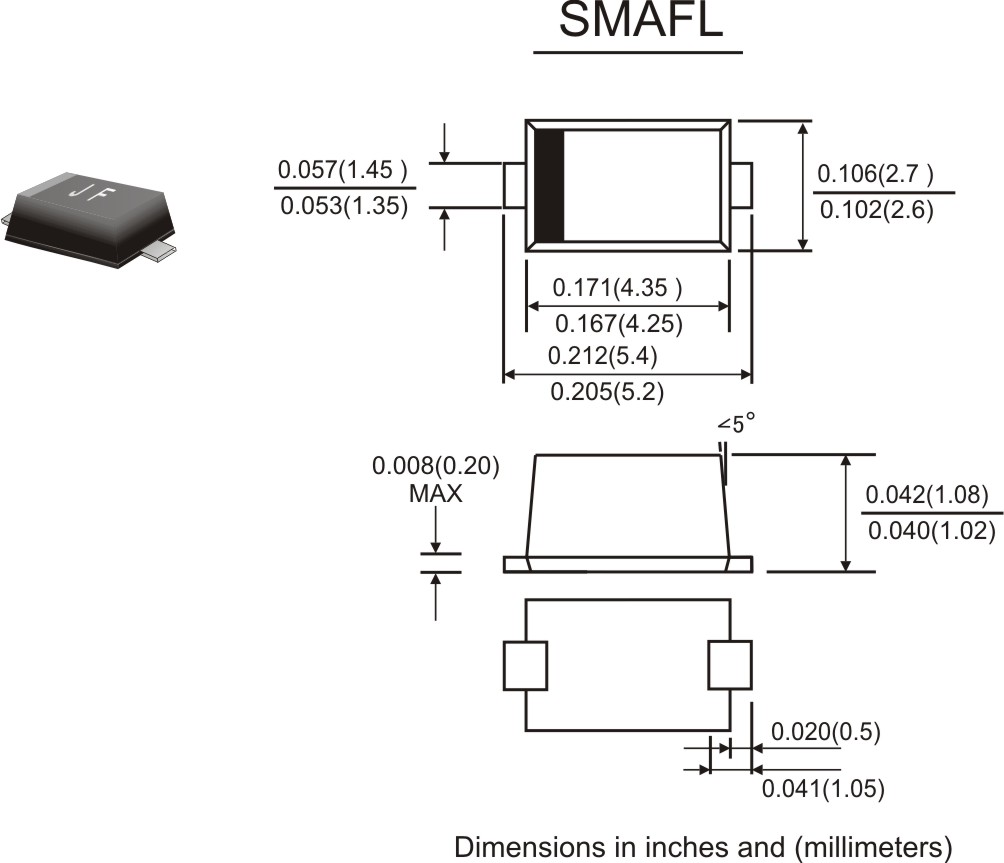

| SS34LT | 下载 | 3.0 | 40 | 80 | 0.47 | 3.0 | 200 | SMAFL | |
| L34P | 下载 | 3.0 | 40 | 50 | 0.50 | 3.0 | 300 | SOD-123P | |

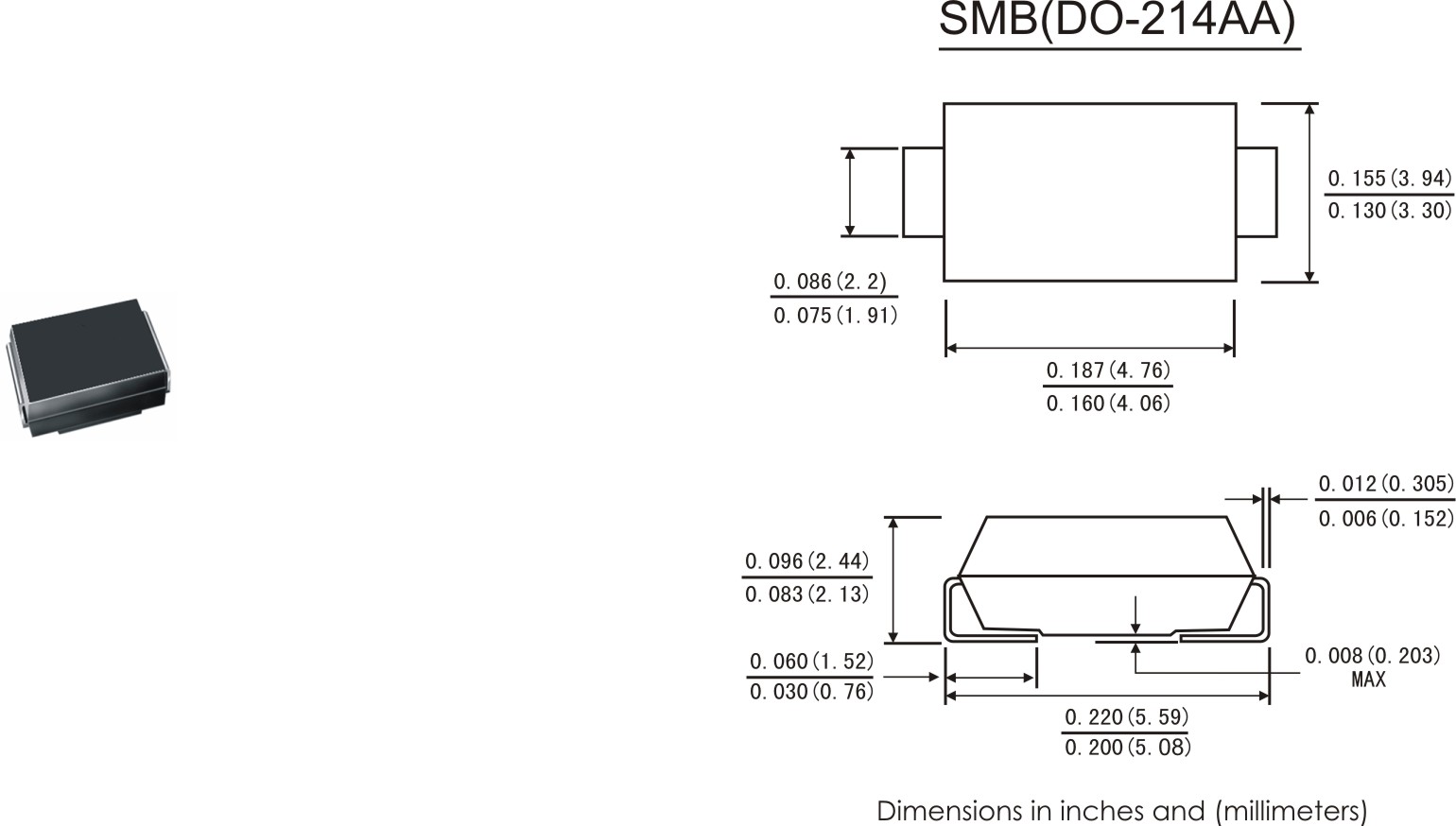

| SS34LB | 下载 | 3.0 | 40 | 80 | 0.47 | 3.0 | 200 | SMB(DO-214AA) | |
| SS345L | 下载 | 3.0 | 45 | 80 | 0.47 | 3.0 | 200 | SMA | |
| SS345SLB | 下载 | 3.0 | 45 | 80 | 0.43 | 3.0 | 200 | SMB(DO-214AA) | |
| SS345LBT | 下载 | 3.0 | 45 | 80 | 0.47 | 3.0 | 200 | SMBFL | |

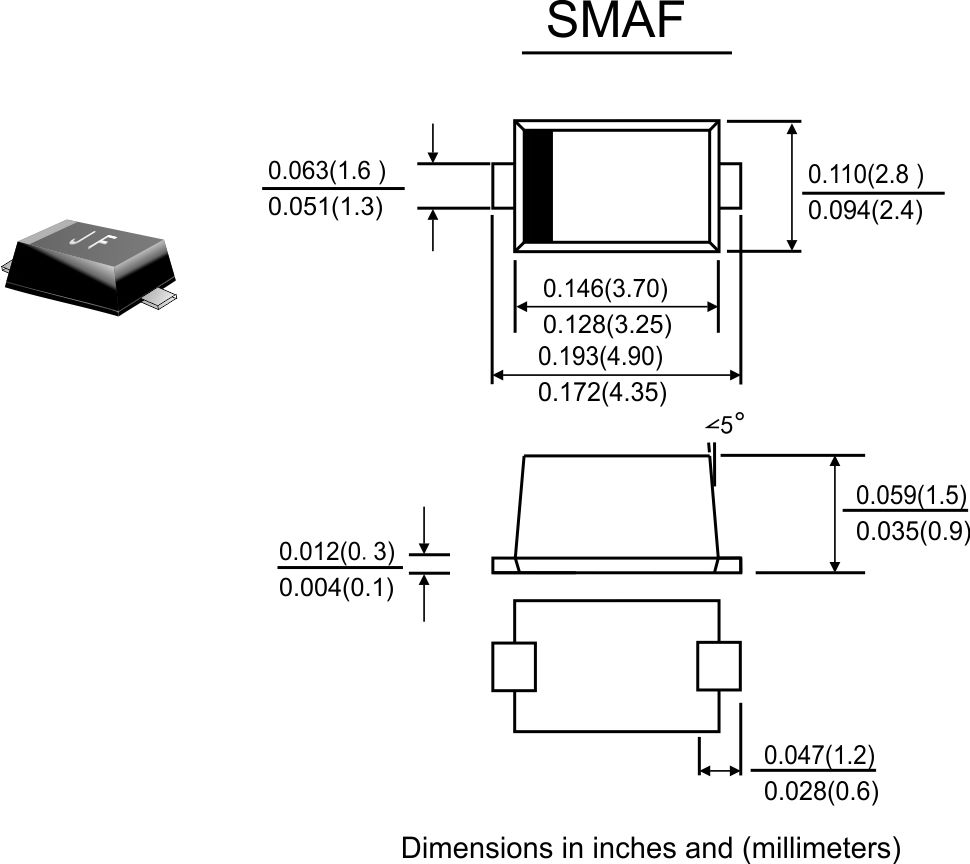

| SS34SLS | 下载 | 3.0 | 45 | 80 | 0.43 | 3.0 | 200 | SMAF | |
| SS34LS | 下载 | 3.0 | 40 | 80 | 0.47 | 3.0 | 200 | SMAF | |
| SR360L | 下载 | 3.0 | 60 | 80 | 0.55 | 3.0 | 150 | DO-15 | |
| SR360L | 下载 | 3.0 | 60 | 80 | 0.55 | 3.0 | 150 | DO-201AD |
