标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|
| L053WT | 下载 | 0.5 | 30 | 5 | 0.45 | 0.5 | 80 | SOD-323FL | |
| L054WT | 下载 | 0.5 | 40 | 5 | 0.47 | 0.5 | 50 | SOD-323FL | |

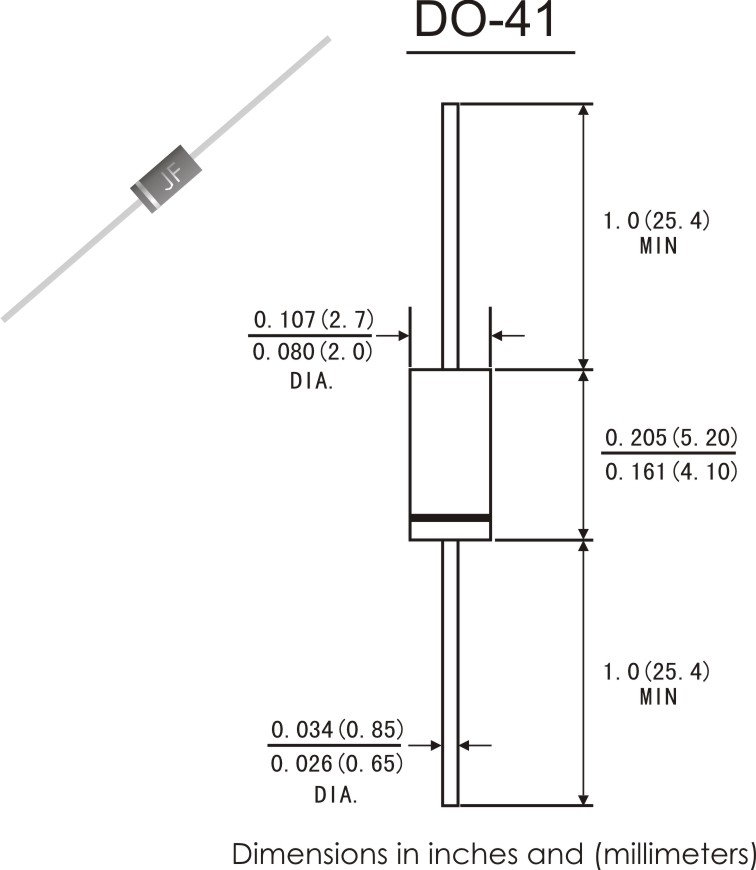

| SR140L | 下载 | 1.0 | 40 | 40 | 0.45 | 1.0 | 200 | DO-41 | |
| SR150L | 下载 | 1.0 | 50 | 40 | 0.47 | 1.0 | 200 | DO-41 | |
| SR160L | 下载 | 1.0 | 60 | 40 | 0.55 | 1.0 | 150 | DO-41 | |
| SR1100L | 下载 | 1.0 | 100 | 40 | 0.71 | 1.0 | 10 | DO-41 | |
| SR1150L | 1.0 | 150 | 40 | 0.85 | 1.0 | 10 | DO-41 | ||

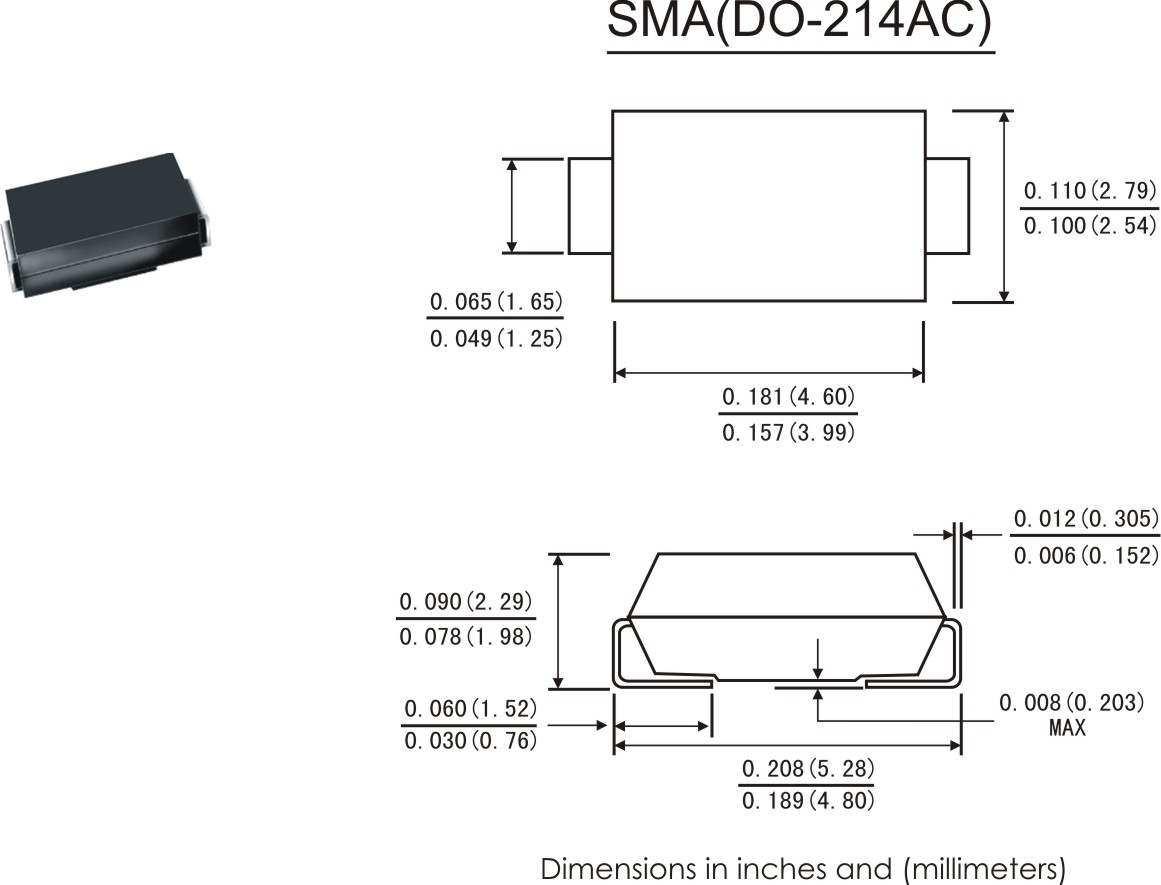

| SS110L | 下载 | 1.0 | 100 | 40 | 0.71 | 1.0 | 10 | SMA(DO-214AC) | |

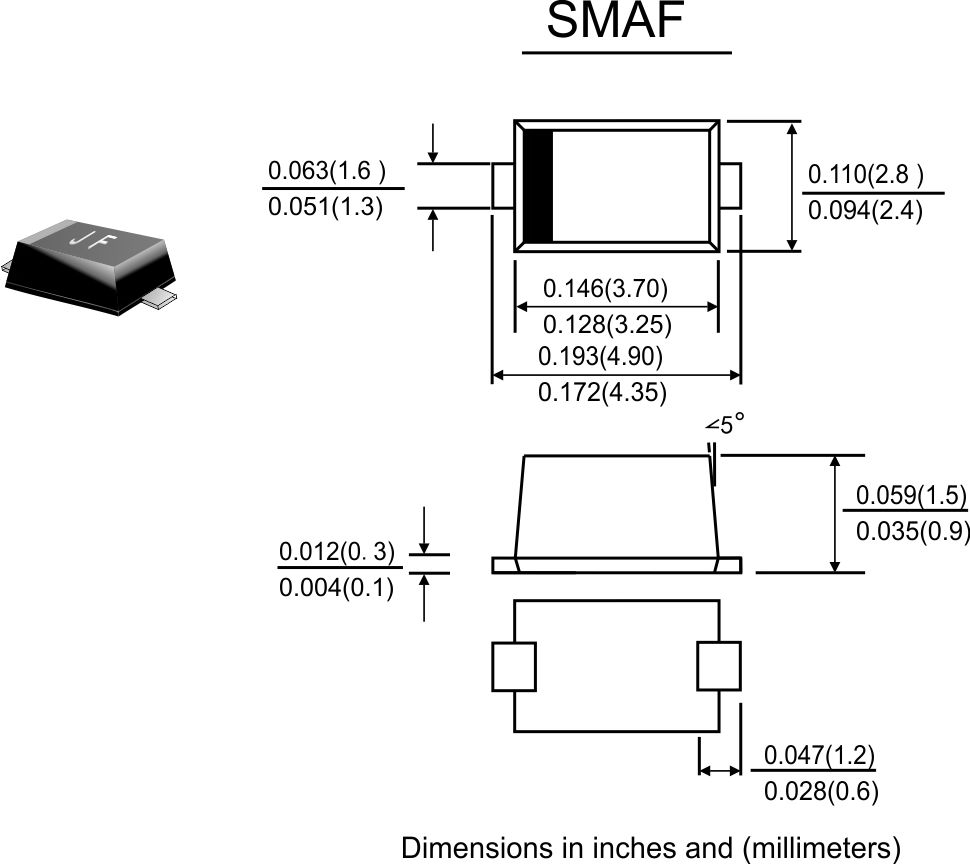

| SS110LS | 下载 | 1.0 | 100 | 40 | 0.71 | 1.0 | 10 | SMAF | |
| SR1150L | 下载 | 1.0 | 150 | 40 | 0.85 | 1.0 | 10 | DO-41 | |
| SS14L | 下载 | 1.0 | 40 | 40 | 0.45 | 1.0 | 200 | SMA(DO-214AC) | |
| SS14LS | 下载 | 1.0 | 40 | 40 | 0.45 | 1.0 | 200 | SMAF | |

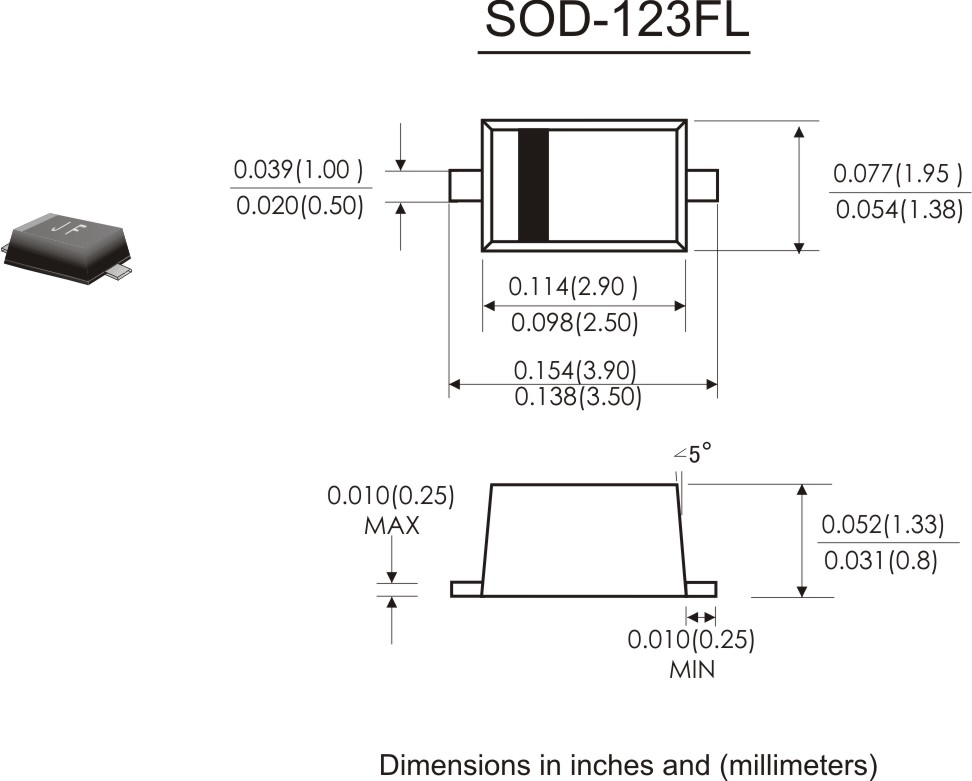

| L14 | 下载 | 1.0 | 40 | 40 | 0.45 | 1.0 | 200 | SOD-123FL | |
| SS16L | 下载 | 1.0 | 60 | 40 | 0.55 | 1.0 | 150 | SMA(DO-214AC) | |
| SS16LS | 下载 | 1.0 | 60 | 40 | 0.55 | 1.0 | 150 | SMAF | |

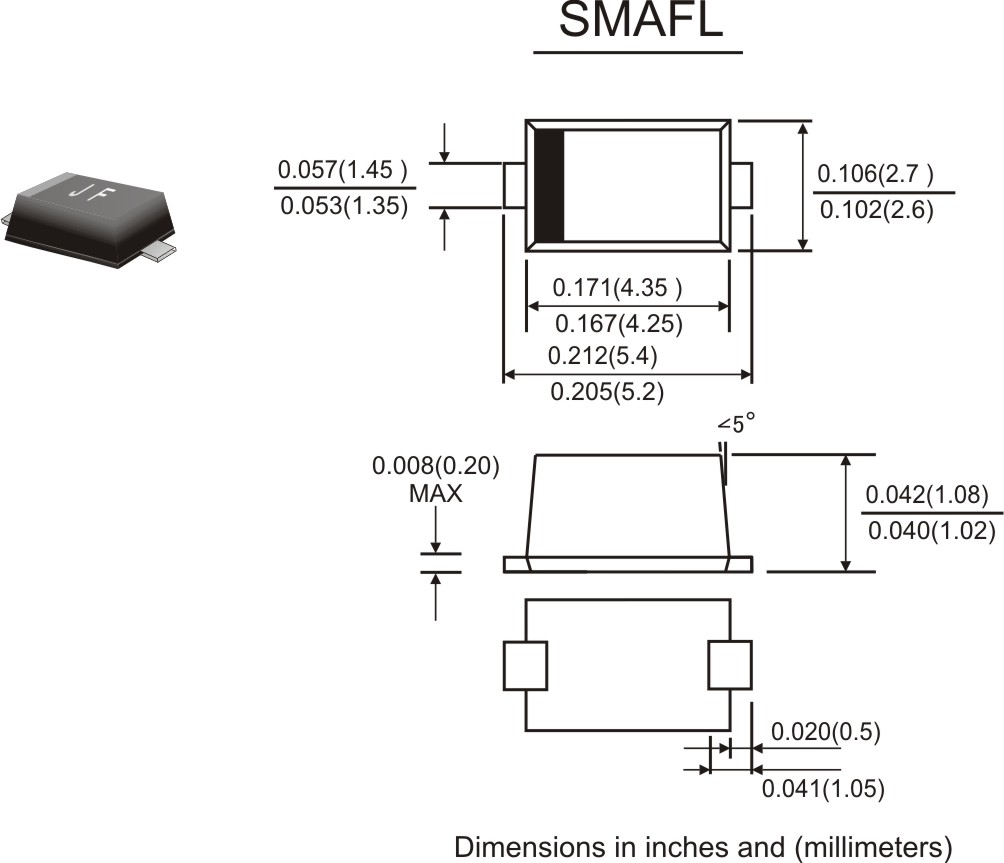

| SS16LT | 下载 | 1.0 | 60 | 40 | 0.55 | 1.0 | 150 | SMAFL | |
| L16 | 下载 | 1.0 | 60 | 40 | 0.55 | 1.0 | 150 | SOD-123FL | |

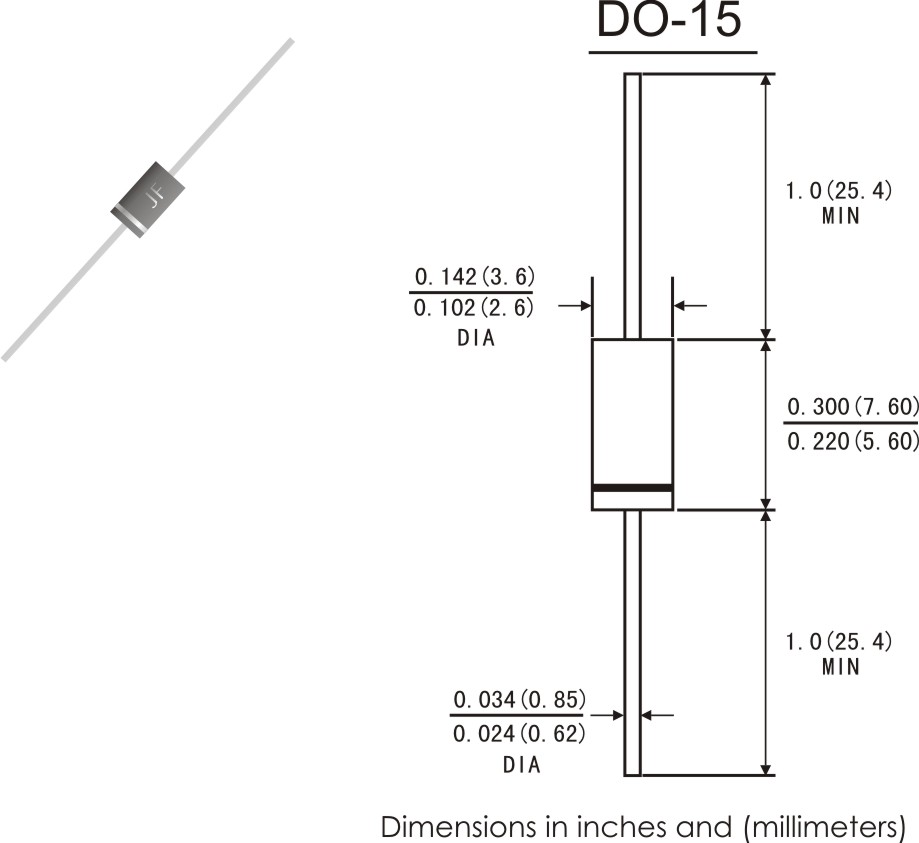

| SR240L | 下载 | 2.0 | 40 | 50 | 0.45 | 2.0 | 200 | DO-15 | |
| SR240SL | 下载 | 2.0 | 40 | 50 | 0.43 | 2.0 | 200 | DO-15 | |
| SR260L | 下载 | 2.0 | 60 | 50 | 0.55 | 2.0 | 150 | DO-15 |
