标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|

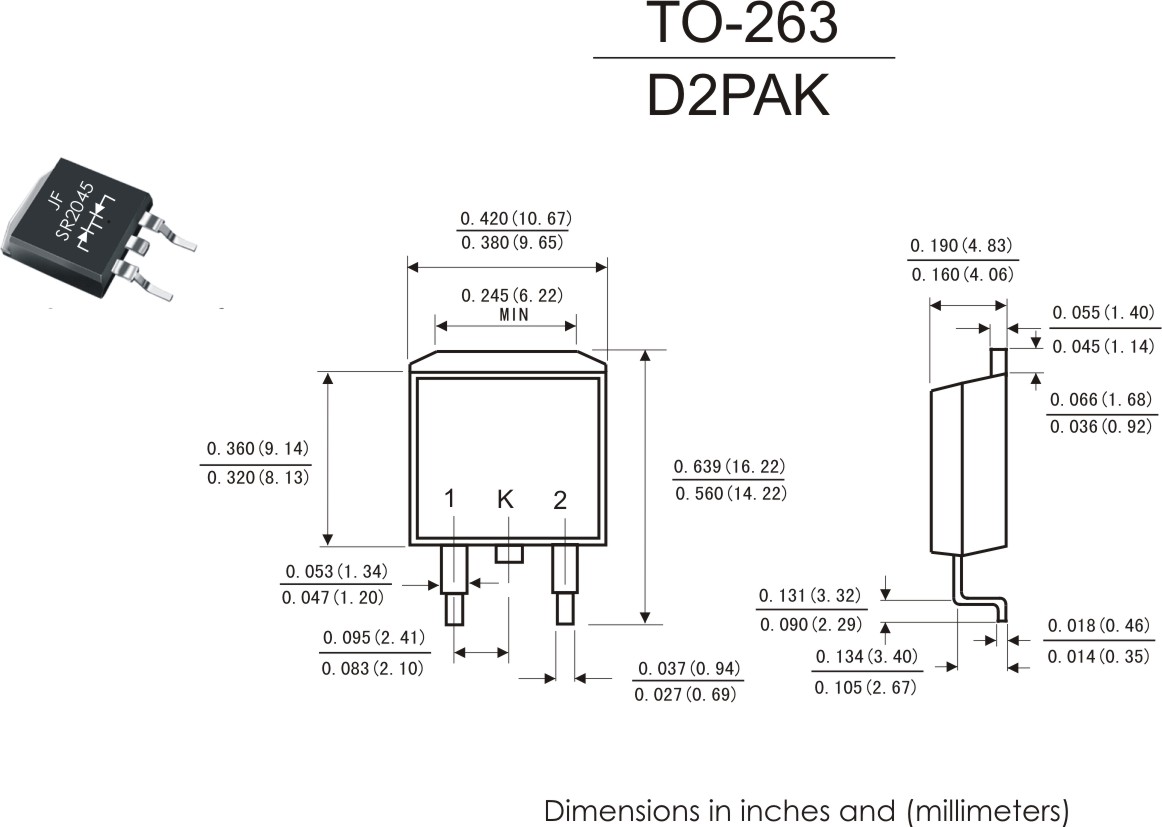

| SR30100LD3 | 下载 | 30.0 | 100 | 400 | 0.80 | 30.0 | 45 | TO-263(D2PAK) | |
| SR30100LM3 | 下载 | 30.0 | 100 | 200 | 0.80 | 30.0 | 30 | TO-252(DPAK) | |

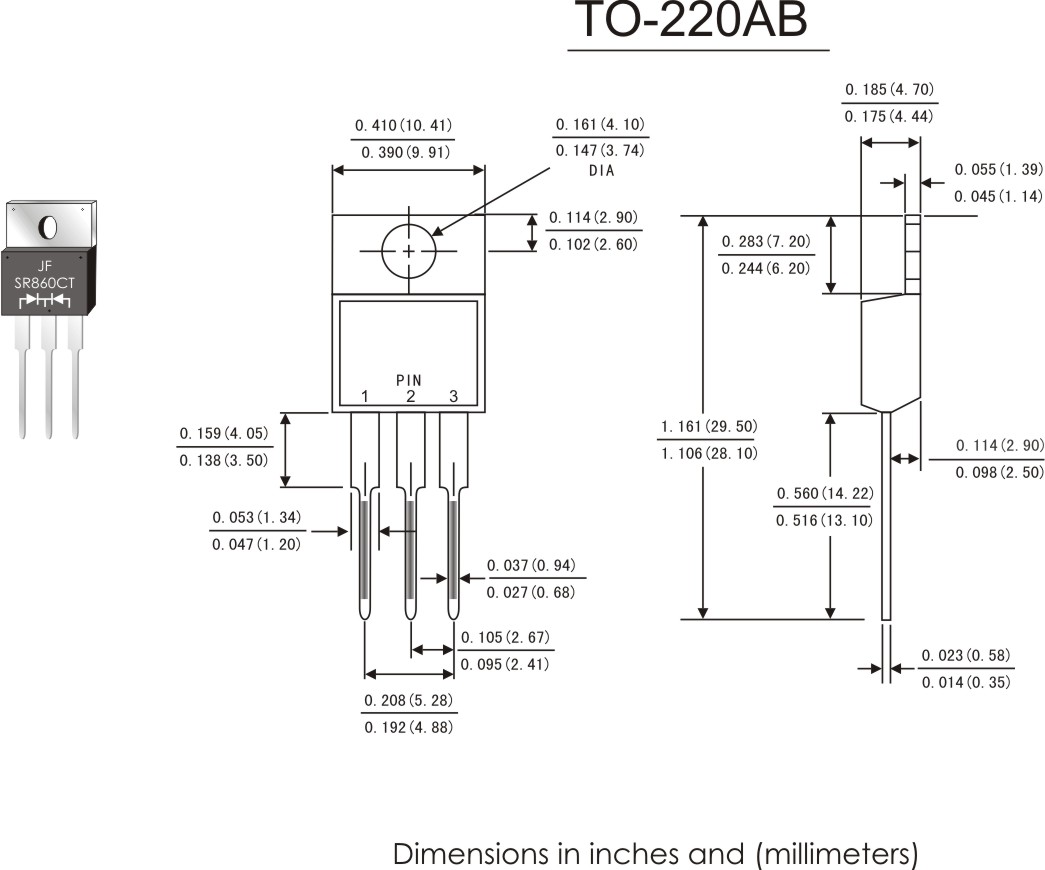

| SR30100SLCT | 下载 | 30.0 | 100 | 350 | 0.69 | 15.0 | 50 | TO-220AB | |

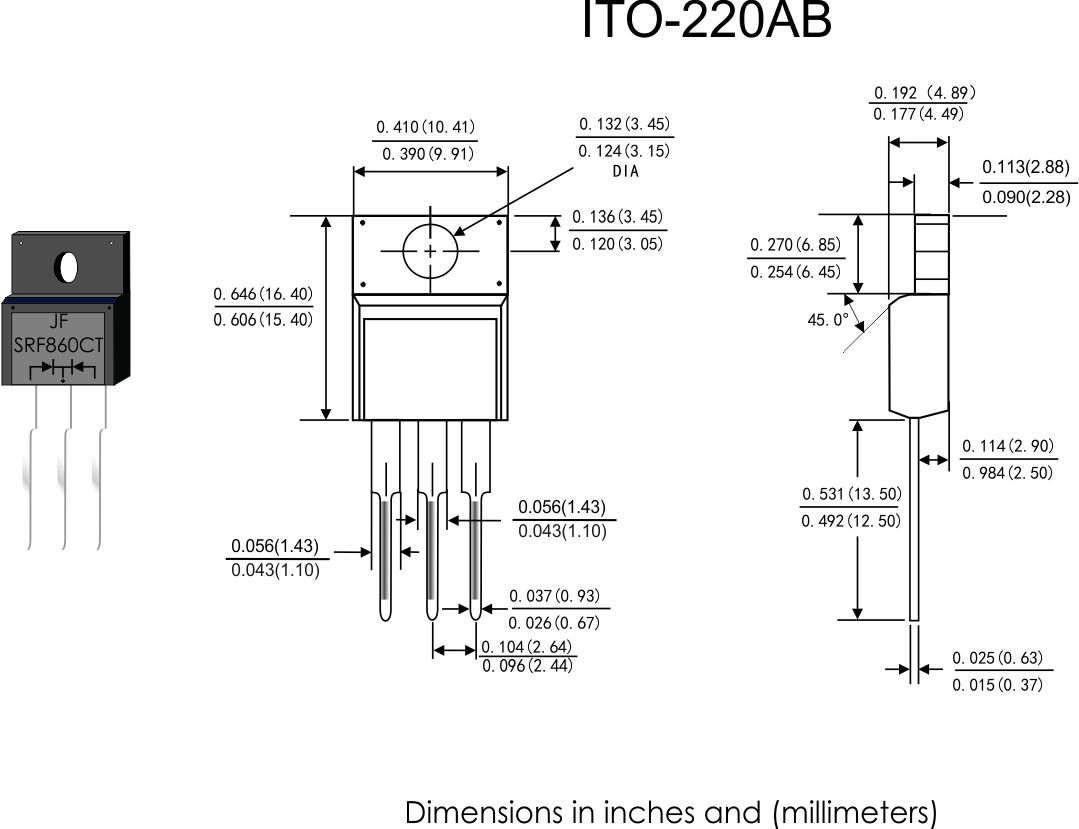

| SRF30100SLCT | 下载 | 30.0 | 100 | 350 | 0.69 | 15.0 | 50 | ITO-220AB | |
| SR30100SLD1 | 下载 | 30.0 | 100 | 350 | 0.69 | 15.0 | 50 | TO-263(D2PAK) | |

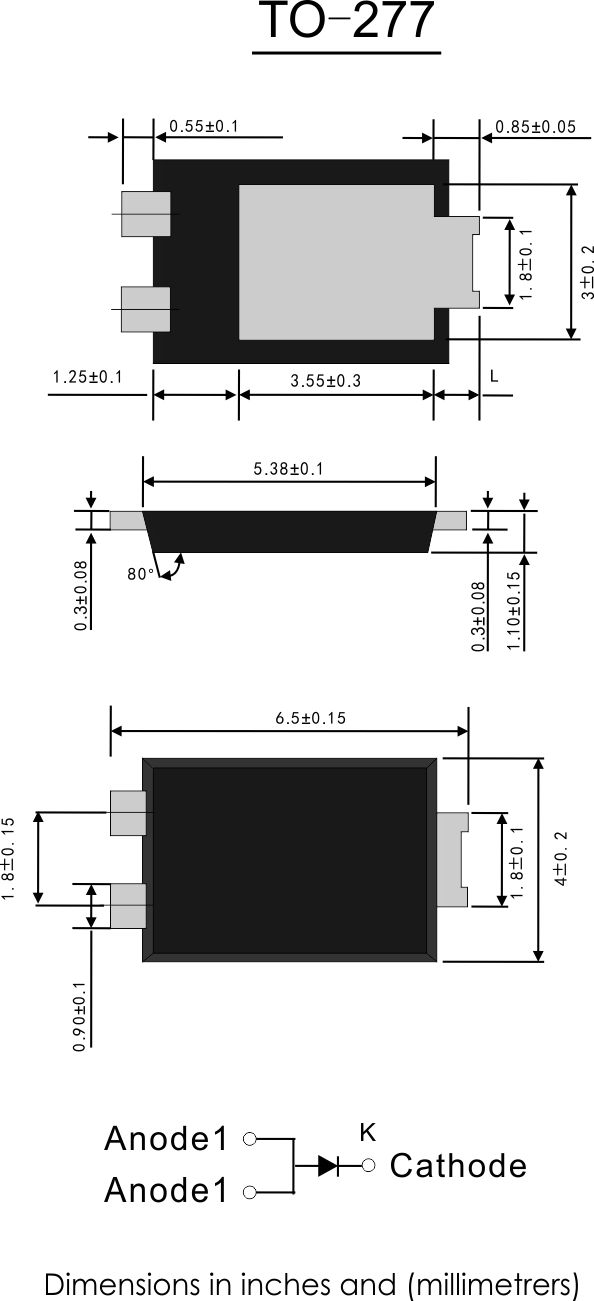

| SP30U100L | 下载 | 30.0 | 100 | 300 | 0.77 | 30.0 | 100 | TO-277 | |
| SP30U100SL | 下载 | 30.0 | 100 | 325 | 0.80 | 30.0 | 50 | TO-277 | |
| SRFL30100LCT | 下载 | 30.0 | 100 | 250 | 0.75 | 15.0 | 50 | ITO-220AB-L | |
| SRFN30100LCT | 下载 | 30.0 | 100 | 250 | 0.75 | 15.0 | 50 | ITO-220AB-N | |
| SR30120LCT | 下载 | 30.0 | 120 | 250 | 0.85 | 15.0 | 50 | TO-220AB | |
| SRF30120LCT | 下载 | 30.0 | 120 | 250 | 0.85 | 15.0 | 50 | ITO-220AB | |
| SR30120LD1 | 下载 | 30.0 | 120 | 250 | 0.85 | 15.0 | 50 | TO-263(D2PAK) | |
| SP30U120L | 下载 | 30.0 | 120 | 250 | 1.02 | 30.0 | 20 | TO-277 | |
| SR30150LCT | 下载 | 30.0 | 150 | 250 | 0.84 | 15.0 | 20 | TO-220AB | |
| SRF30150LCT | 下载 | 30.0 | 150 | 250 | 0.84 | 15.0 | 20 | ITO-220AB | |
| SR30150LD1 | 下载 | 30.0 | 150 | 250 | 0.84 | 15.0 | 20 | TO-263(D2PAK) | |
| SR30150L | 下载 | 30.0 | 150 | 300 | 0.90 | 30.0 | 10 | TO-220AC | |
| SRF30150L | 下载 | 30.0 | 150 | 300 | 0.90 | 30.0 | 10 | ITO-220AC | |
| SR30200LCT | 下载 | 30.0 | 200 | 250 | 0.88 | 15.0 | 20 | TO-220AB | |
| SRF30200LCT | 下载 | 30.0 | 200 | 250 | 0.88 | 15.0 | 20 | ITO-220AB |
