标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|
| SRF20300LCT | 下载 | 20.0 | 300 | 200 | 0.90 | 10 | 5 | ITO-220AB | |

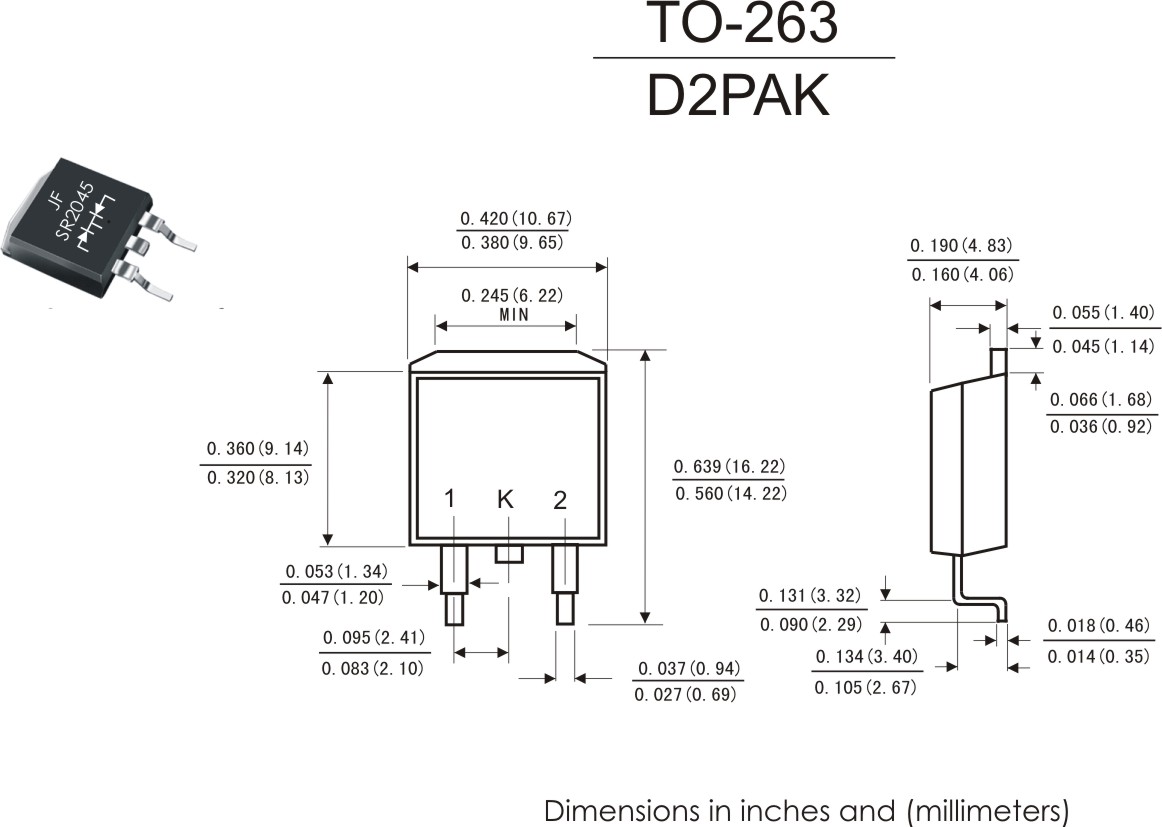

| SR20300LD1 | 下载 | 20.0 | 300 | 200 | 0.90 | 10 | 5 | TO-263(D2PAK) | |

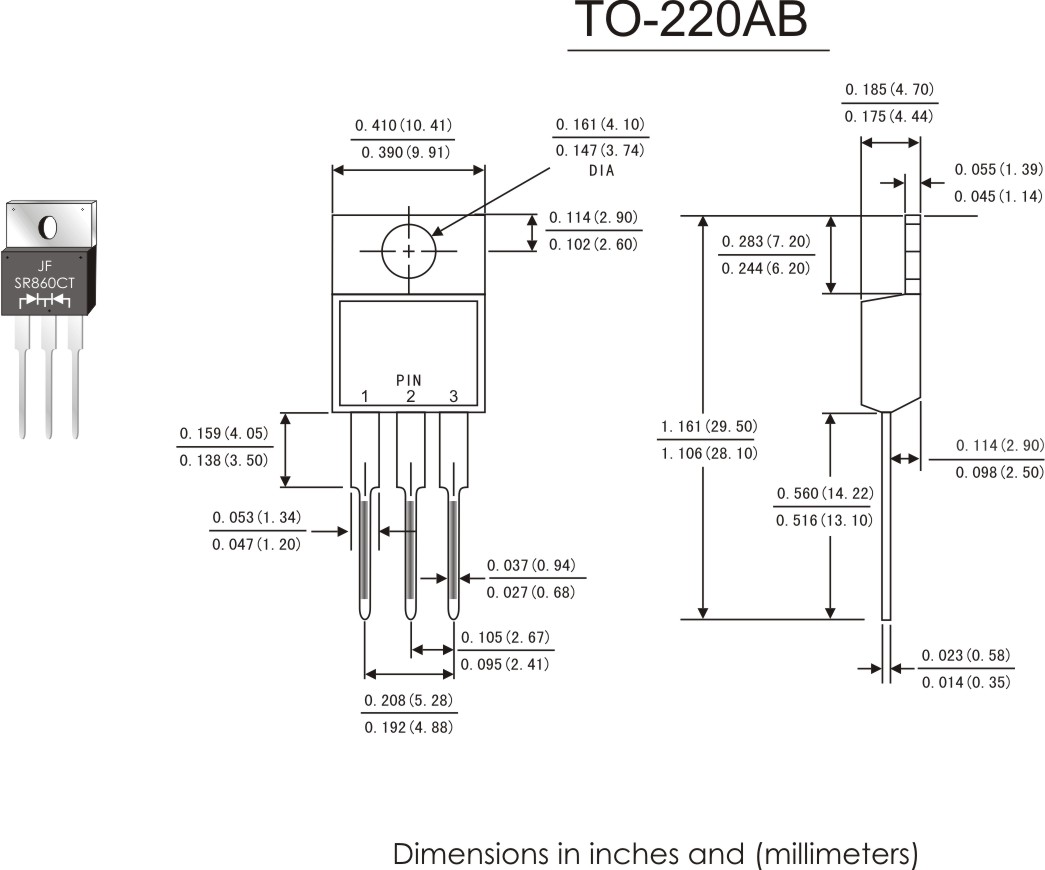

| SR3045LCT | 下载 | 30.0 | 45 | 200 | 0.52 | 15.0 | 300 | TO-220AB | |
| SRF3045LCT | 下载 | 30.0 | 45 | 300 | 0.52 | 15.0 | 200 | ITO-220AB | |
| SR3045LD1 | 下载 | 30.0 | 45 | 200 | 0.52 | 15.0 | 300 | TO-263(D2PAK) | |
| SR3045LKT | 下载 | 30.0 | 45 | 300 | 0.52 | 15.0 | 200 | TO-3P | |
| SRF3045SLCT | 下载 | 30.0 | 45 | 300 | 0.50 | 15.0 | 200 | ITO-220AB | |
| SR3060LCT | 下载 | 30.0 | 60 | 200 | 0.60 | 15.0 | 50 | TO-220AB | |
| SRF3060LCT | 下载 | 30.0 | 60 | 200 | 0.60 | 15.0 | 50 | ITO-220AB | |
| SR3060LD1 | 下载 | 30.0 | 60 | 200 | 0.60 | 15.0 | 50 | TO-263(D2PAK) | |
| SR3060SLCT | 下载 | 30.0 | 60 | 300 | 0.55 | 15.0 | 100 | TO-220AB | |
| SRF3060SLCT | 下载 | 30.0 | 60 | 300 | 0.55 | 15.0 | 100 | ITO-220AB | |
| SR3060SLD1 | 下载 | 30.0 | 60 | 300 | 0.55 | 15.0 | 100 | TO-263 | |
| SR3080LCT | 下载 | 30.0 | 80 | 300 | 0.68 | 15.0 | 50 | TO-220AB | |
| SRF3080LCT | 下载 | 30.0 | 80 | 300 | 0.68 | 15.0 | 50 | ITO-220AB | |
| SR3080LD1 | 下载 | 30.0 | 80 | 300 | 0.68 | 15.0 | 50 | TO-263(D2PAK) | |
| SR3080LM3 | 下载 | 30.0 | 80 | 250 | 0.75 | 30.0 | 100 | TO-252(DPAK) | |
| SR30100LCT | 下载 | 30.0 | 100 | 150 | 0.73 | 15.0 | 50 | TO-220AB | |
| SRF30100LCT | 下载 | 30.0 | 100 | 150 | 0.73 | 15.0 | 50 | ITO-220AB | |
| SR30100LD1 | 下载 | 30.0 | 100 | 150 | 0.73 | 15.0 | 50 | TO-263(D2PAK) |
