标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|
| RJBF404 | 查看 | 4.0 | 400 | 145 | 1.25 | 4.0 | 5 | 150 | JBF |
| RJBF406 | 查看 | 4.0 | 600 | 145 | 1.25 | 4.0 | 5 | 250 | JBF |
| RJBF408 | 查看 | 4.0 | 800 | 145 | 1.25 | 4.0 | 5.0 | 500 | JBF |
| RJBF410 | 查看 | 4.0 | 1000 | 145 | 1.25 | 4.0 | 5.0 | 500 | JBF |
| KBP4005 | 查看 | 4.0 | 50 | 110 | 1.0 | 2.0 | 5.0 | KBP | |
| KBP401 | 查看 | 4.0 | 100 | 110 | 1.0 | 2.0 | 5.0 | KBP | |
| KBP402 | 查看 | 4.0 | 200 | 110 | 1.0 | 2.0 | 5.0 | KBP | |
| KBP404 | 查看 | 4.0 | 400 | 110 | 1.0 | 2.0 | 5.0 | KBP | |
| KBP406 | 查看 | 4.0 | 600 | 110 | 1.0 | 2.0 | 5.0 | KBP | |
| KBP408 | 查看 | 4.0 | 800 | 110 | 1.0 | 2.0 | 5.0 | KBP | |
| KBP410 | 查看 | 4.0 | 1000 | 110 | 1.0 | 2.0 | 5.0 | KBP | |
| D3K4005 | 查看 | 4.0 | 50 | 135 | 1.0 | 2.0 | 5.0 | D3K | |
| D3K401 | 查看 | 4.0 | 100 | 135 | 1.0 | 2.0 | 5.0 | D3K | |
| D3K402 | 查看 | 4.0 | 200 | 135 | 1.0 | 2.0 | 5.0 | D3K | |
| D3K404 | 查看 | 4.0 | 400 | 135 | 1.0 | 2.0 | 5.0 | D3K | |
| D3K406 | 查看 | 4.0 | 600 | 135 | 1.0 | 2.0 | 5.0 | D3K | |
| D3K408 | 查看 | 4.0 | 800 | 135 | 1.0 | 2.0 | 5.0 | D3K | |
| D3K410 | 查看 | 4.0 | 1000 | 135 | 1.0 | 2.0 | 5.0 | D3K | |
| RKBL406 | 查看 | 4.0 | 600 | 120 | 1.3 | 4.0 | 5 | 500 | KBL |

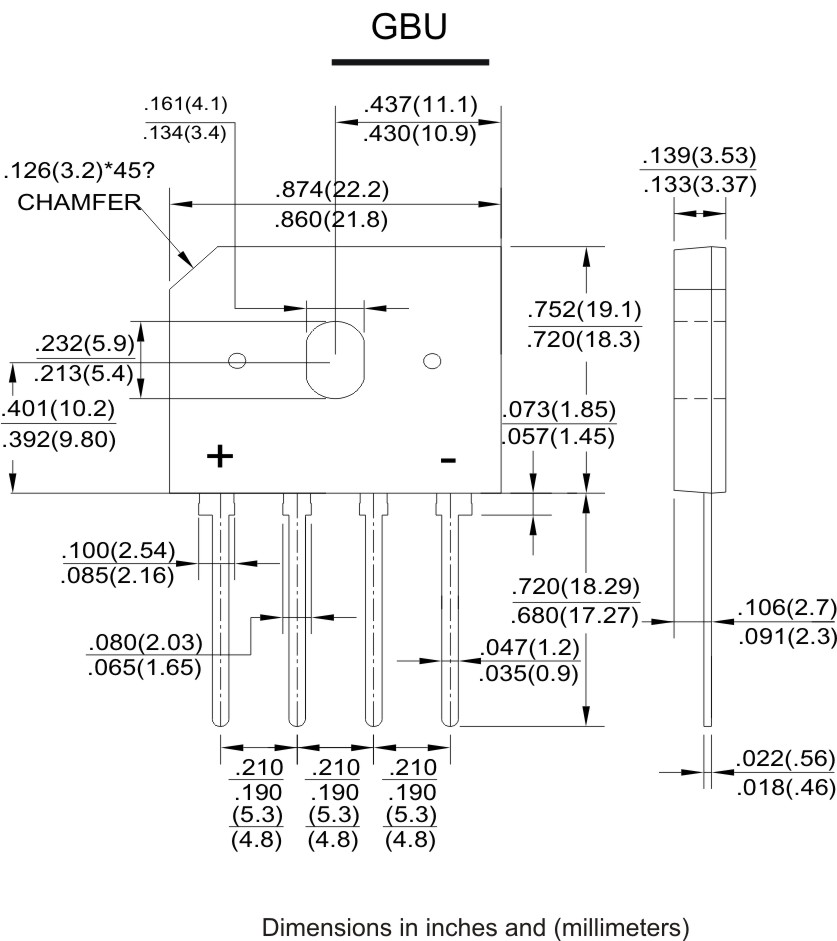

| GBU601 | 查看 | 6.0 | 100 | 175 | 1.0 | 3.0 | 5 | GBU |
