标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|
| ES1AS | 下载 | 1.0 | 50 | 30 | 0.95 | 1.0 | 5.0 | 35 | SMAF |
| ES1BS | 下载 | 1.0 | 100 | 30 | 0.95 | 1.0 | 5.0 | 35 | SMAF |
| ES1DS | 下载 | 1.0 | 200 | 30 | 0.95 | 1.0 | 5.0 | 35 | SMAF |
| ES1GS | 下载 | 1.0 | 400 | 30 | 1.25 | 1.0 | 5.0 | 35 | SMAF |
| ES1JS | 下载 | 1.0 | 600 | 30 | 1.7 | 1.0 | 5.0 | 35 | SMAF |

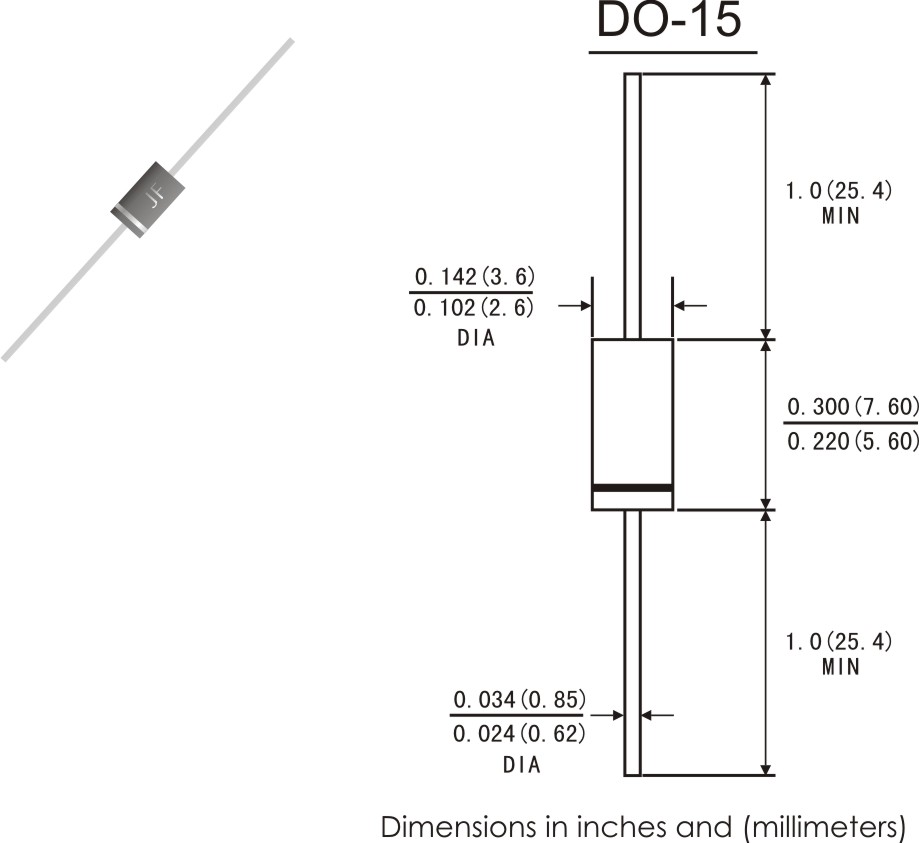

| FR151 | 下载 | 1.5 | 50 | 50 | 1.2 | 1.5 | 5 | 150 | DO-15 |
| FR152 | 下载 | 1.5 | 100 | 50 | 1.2 | 1.5 | 5 | 150 | DO-15 |
| FR153 | 下载 | 1.5 | 200 | 50 | 1.2 | 1.5 | 5 | 150 | DO-15 |
| FR154 | 下载 | 1.5 | 400 | 50 | 1.2 | 1.5 | 5 | 150 | DO-15 |
| FR155 | 下载 | 1.5 | 600 | 50 | 1.2 | 1.5 | 5 | 250 | DO-15 |
| FR156 | 下载 | 1.5 | 800 | 50 | 1.2 | 1.5 | 5 | 500 | DO-15 |
| FR157 | 下载 | 1.5 | 1000 | 50 | 1.2 | 1.5 | 5 | 500 | DO-15 |
| RGP15A | 下载 | 1.5 | 50 | 50 | 1.3 | 1.5 | 5.0 | 150 | DO-15 |
| RGP15G | 下载 | 1.5 | 400 | 50 | 1.3 | 1.5 | 5.0 | 150 | DO-15 |
| RGP15J | 下载 | 1.5 | 600 | 50 | 1.3 | 1.5 | 5.0 | 250 | DO-15 |
| RGP15K | 下载 | 1.5 | 800 | 50 | 1.3 | 1.5 | 5.0 | 500 | DO-15 |
| RGP15M | 下载 | 1.5 | 1000 | 50 | 1.3 | 1.5 | 5.0 | 500 | DO-15 |
| HER151 | 下载 | 1.5 | 50 | 50 | 1.0 | 1.5 | 5 | 50 | DO-15 |
| HER152 | 下载 | 1.5 | 100 | 50 | 1.0 | 1.5 | 5 | 50 | DO-15 |
| HER153 | 下载 | 1.5 | 200 | 50 | 1.0 | 1.5 | 5 | 50 | DO-15 |
