标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|
| US1MS | 下载 | 1.0 | 1000 | 30 | 1.7 | 1.0 | 5.0 | 75 | SMAF |

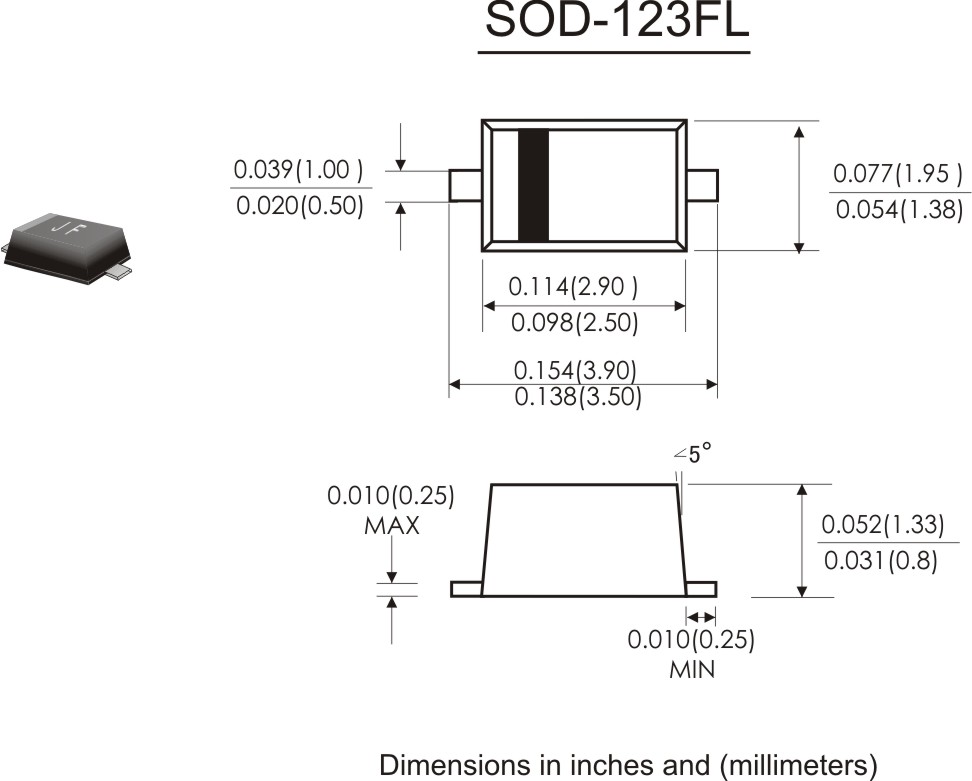

| U1A | 下载 | 1.0 | 50 | 30 | 1.0 | 1.0 | 5.0 | 50 | SOD-123FL |
| U1D | 下载 | 1.0 | 200 | 30 | 1.0 | 1.0 | 5.0 | 50 | SOD-123FL |
| U1G | 下载 | 1.0 | 400 | 30 | 1.3 | 1.0 | 5.0 | 50 | SOD-123FL |
| U1J | 下载 | 1.0 | 600 | 30 | 1.7 | 1.0 | 5.0 | 75 | SOD-123FL |
| U1K | 下载 | 1.0 | 800 | 30 | 1.7 | 1.0 | 5.0 | 75 | SOD-123FL |
| U1M | 下载 | 1.0 | 1000 | 30 | 1.7 | 1.0 | 5.0 | 75 | SOD-123FL |

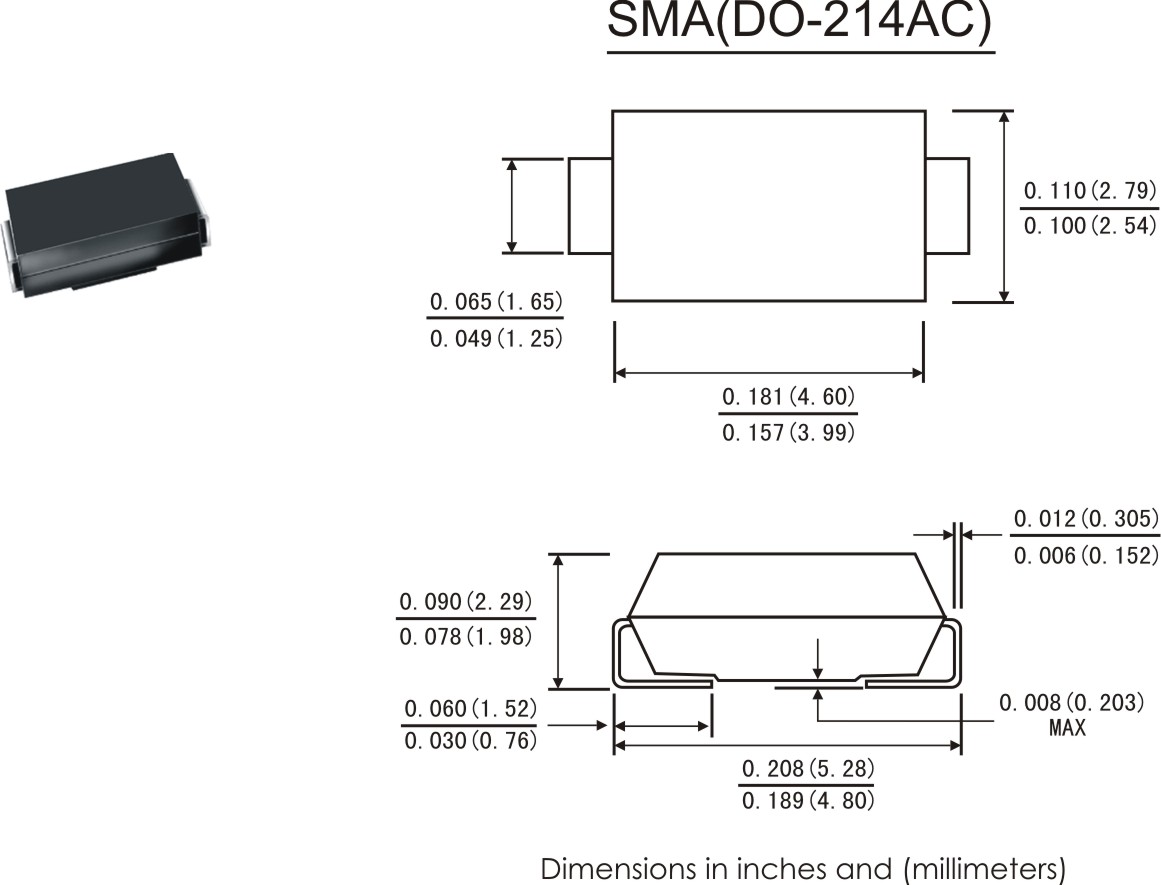

| ES1A | 下载 | 1.0 | 50 | 30 | 0.95 | 1.0 | 5 | 35 | SMA |
| ES1B | 下载 | 1.0 | 100 | 30 | 0.95 | 1.0 | 5 | 35 | SMA |
| ES1D | 下载 | 1.0 | 200 | 30 | 0.95 | 1.0 | 5 | 35 | SMA |
| ES1G | 下载 | 1.0 | 400 | 30 | 1.25 | 1.0 | 5 | 35 | SMA |
| ES1J | 下载 | 1.0 | 600 | 30 | 1.7 | 1.0 | 5 | 35 | SMA |
| E1A | 下载 | 1.0 | 50 | 30 | 0.95 | 1.0 | 5 | 35 | SOD-123FL |
| E1B | 下载 | 1.0 | 100 | 30 | 0.95 | 1.0 | 5 | 35 | SOD-123FL |
| E1D | 下载 | 1.0 | 200 | 30 | 0.95 | 1.0 | 5 | 35 | SOD-123FL |
| E1G | 下载 | 1.0 | 400 | 30 | 1.3 | 1.0 | 5 | 35 | SOD-123FL |
| E1J | 下载 | 1.0 | 600 | 30 | 1.7 | 1.0 | 5 | 35 | SOD-123FL |
| E1K | 下载 | 1.0 | 800 | 30 | 2.2 | 1.0 | 5 | 35 | SOD-123FL |
| E1M | 下载 | 1.0 | 1000 | 30 | 2.9 | 1.0 | 5 | 35 | SOD-123FL |
| SD1JF | 下载 | 1.0 | 800 | 9 | 1.7 | 1.0 | 1 | 3000 | SOD-123FL |
