标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|

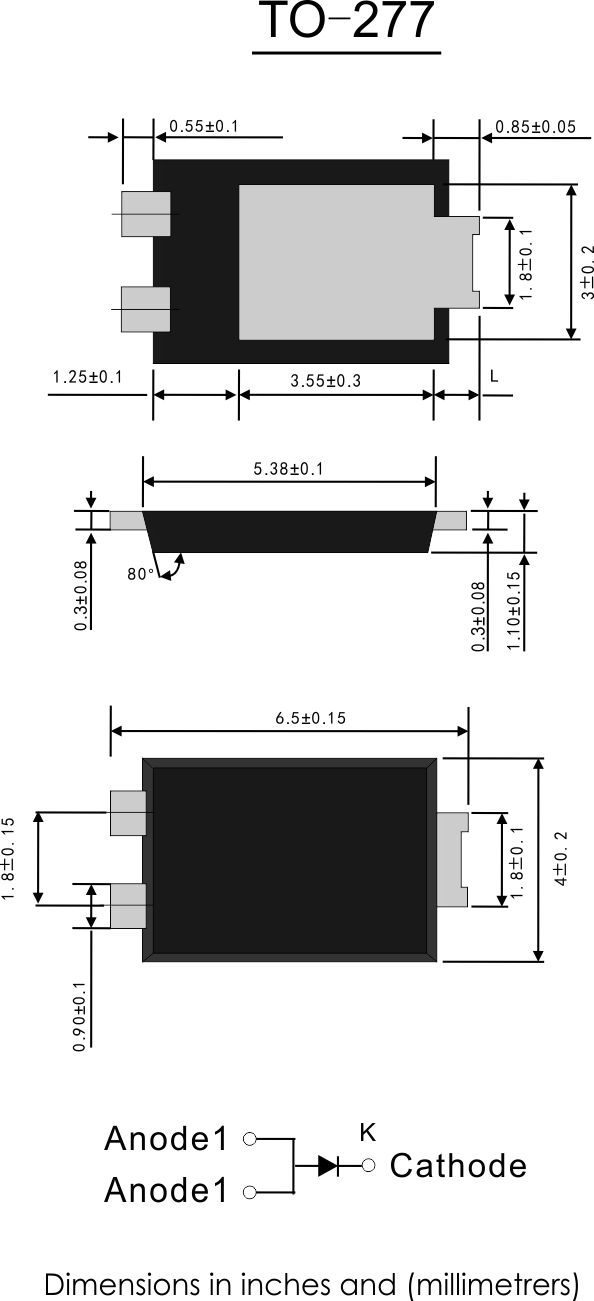

| SP15U120L | 下载 | 15.0 | 120 | 200 | 0.85 | 15.0 | 10 | TO-277 | |
| SP15U150L | 下载 | 15.0 | 150 | 150 | 0.85 | 15.0 | 10 | TO-277 | |

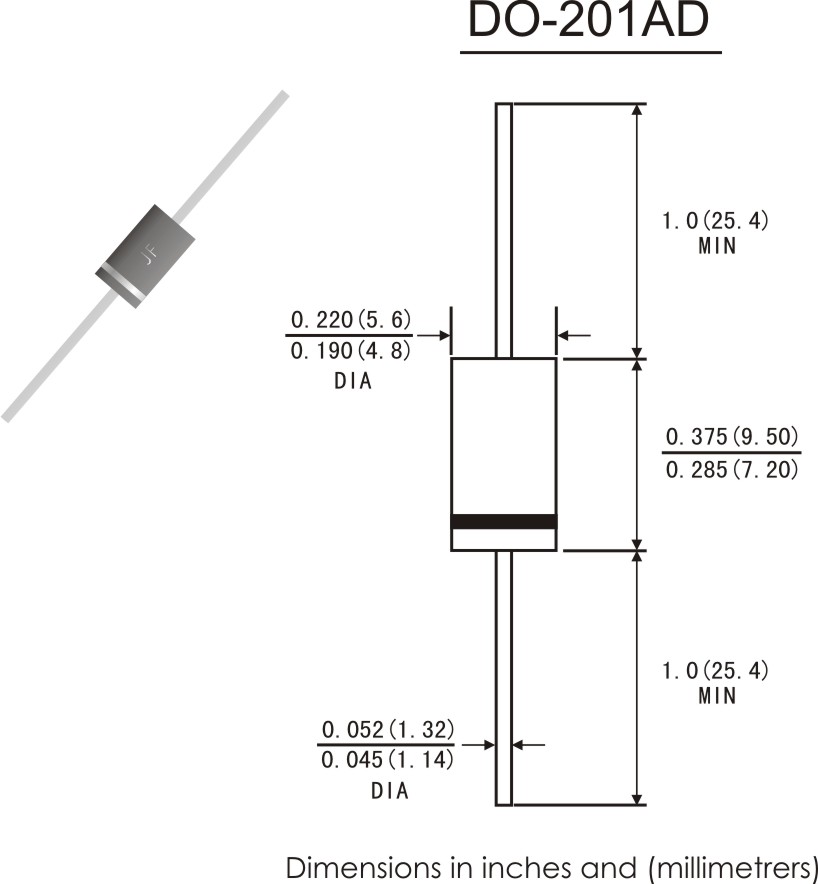

| SR1580L | 下载 | 15.0 | 80 | 150 | 0.65 | 15.0 | 100 | DO-201AD | |
| SR15100L | 下载 | 15.0 | 100 | 150 | 0.72 | 15.0 | 100 | DO-201AD | |
| SR15100L | 下载 | 15.0 | 100 | 250 | 0.85 | 15.0 | 5 | R-6 | |
| SR15150L | 下载 | 15.0 | 150 | 250 | 0.85 | 15.0 | 10 | DO-201AD | |
| SR15100LM1 | 下载 | 15.0 | 100 | 100 | 0.75 | 5.0 | 50 | TO-252 | |
| SP15U200L | 下载 | 15.0 | 200 | 200 | 0.90 | 15.0 | 20 | TO-277 | |
| SR15120LH | 下载 | 15.0 | 120 | 250 | 0.85 | 15.0 | 50 | DO-201AD | |

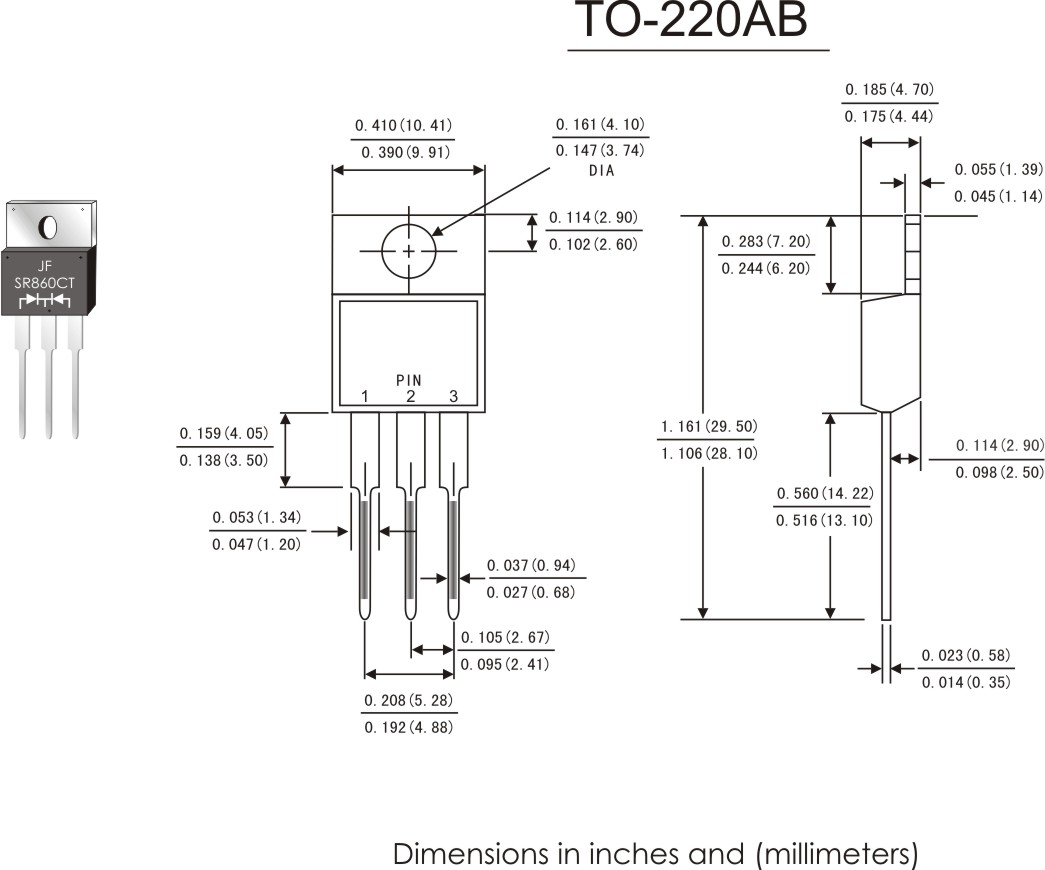

| SR1645LCT | 下载 | 16.0 | 45 | 200 | 0.48 | 8.0 | 200 | TO-220AB | |

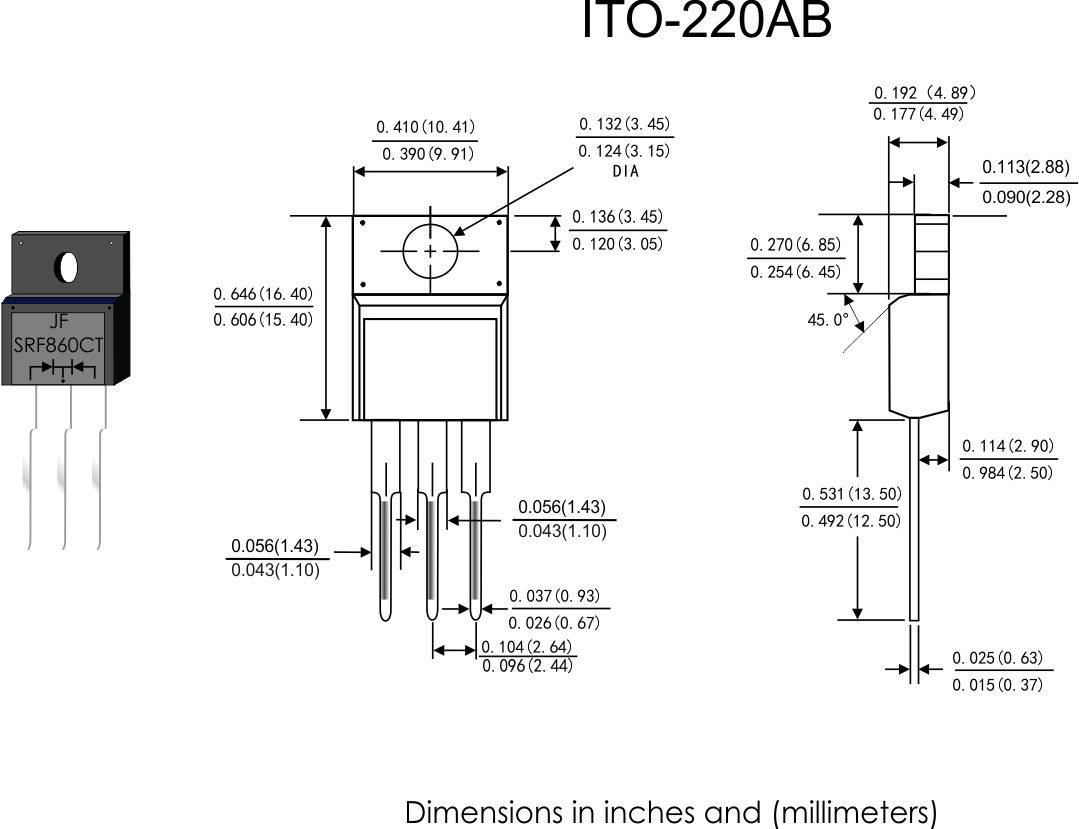

| SRF1645LCT | 下载 | 16.0 | 45 | 200 | 0.48 | 8.0 | 200 | ITO-220AB | |
| SR1645LD1 | 下载 | 16.0 | 45 | 200 | 0.48 | 8.0 | 200 | TO-263(D2PAK) | |

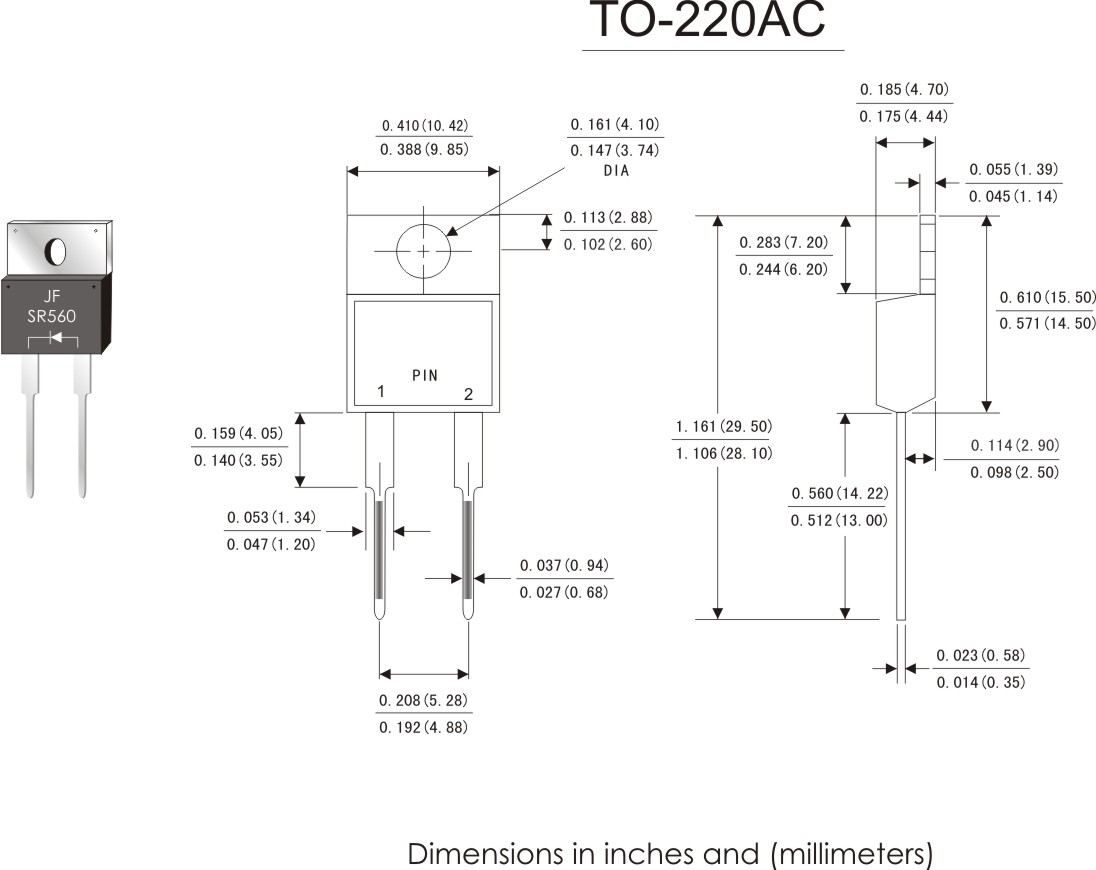

| SR16100L | 下载 | 16.0 | 100 | 200 | 0.70 | 16.0 | 50 | TO-220AC | |

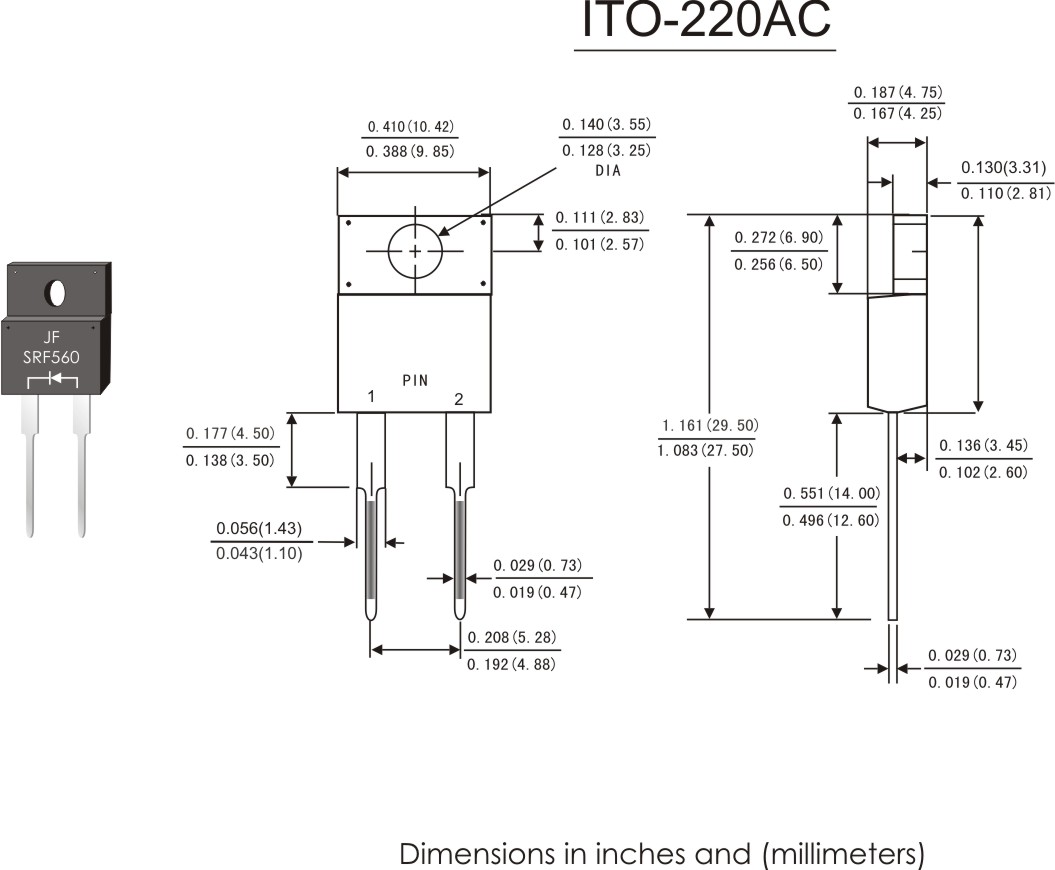

| SRF16100L | 下载 | 16.0 | 100 | 200 | 0.70 | 16.0 | 50 | ITO-220AC | |
| SR2045LCT | 下载 | 20.0 | 45 | 180 | 0.52 | 10.0 | 100 | TO-220AB | |
| SRF2045LCT | 下载 | 20.0 | 45 | 180 | 0.52 | 10.0 | 100 | ITO-220AB | |
| SR2045LD1 | 下载 | 20.0 | 45 | 180 | 0.52 | 10.0 | 100 | TO-263(D2PAK) | |
| SR2045LM3 | 下载 | 20.0 | 45 | 200 | 0.57 | 20.0 | 50 | TO-252(DPAK) | |
| SP20U45L | 下载 | 20.0 | 45 | 200 | 0.55 | 20.0 | 200 | TO-277 | |
| SP20U50L | 下载 | 20.0 | 50 | 200 | 0.52 | 20.0 | 200 | TO-277 |
