标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|
| SF53 | 下载 | 5.0 | 150 | 150 | 0.95 | 5.0 | 5.0 | 35 | DO-201AD |
| SF54 | 下载 | 5.0 | 200 | 150 | 0.95 | 5.0 | 5.0 | 35 | DO-201AD |
| SF56 | 下载 | 5.0 | 400 | 150 | 1.3 | 5.0 | 5.0 | 35 | DO-201AD |
| SF58 | 下载 | 5.0 | 600 | 150 | 1.7 | 5.0 | 5.0 | 35 | DO-201AD |
| SF51G | 下载 | 5.0 | 50 | 150 | 0.95 | 5.0 | 5.0 | 35 | DO-201AD |
| SF52G | 下载 | 5.0 | 100 | 150 | 0.95 | 5.0 | 5.0 | 35 | DO-201AD |
| SF53G | 下载 | 5.0 | 150 | 150 | 0.95 | 5.0 | 5.0 | 35 | DO-201AD |
| SF54G | 下载 | 5.0 | 200 | 150 | 0.95 | 5.0 | 5.0 | 35 | DO-201AD |
| SF55G | 下载 | 5.0 | 300 | 150 | 1.30 | 5.0 | 5.0 | 35 | DO-201AD |
| SF56G | 下载 | 5.0 | 400 | 150 | 1.3 | 5.0 | 5.0 | 35 | DO-201AD |
| SF58G | 下载 | 5.0 | 600 | 150 | 1.7 | 5.0 | 5.0 | 35 | DO-201AD |

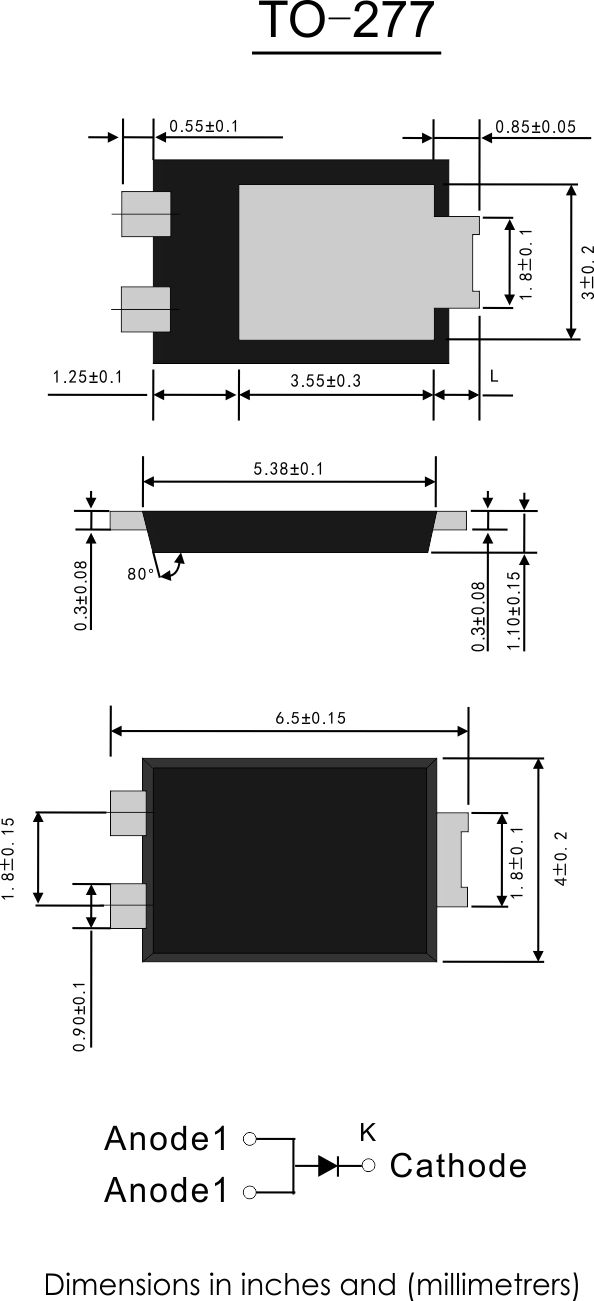

| EP5G | 下载 | 5.0 | 400 | 120 | 1.3 | 5.0 | 10 | 35 | TO-277 |
| EP5J | 下载 | 5.0 | 600 | 120 | 1.70 | 5.0 | 10 | 35 | TO-277 |
| ES5AC | 下载 | 5.0 | 50 | 150 | 0.95 | 5.0 | 5 | 35 | SMC |
| ES5BC | 下载 | 5.0 | 100 | 150 | 0.95 | 5.0 | 5 | 35 | SMC |
| ES5DC | 下载 | 5.0 | 200 | 150 | 0.95 | 5.0 | 5 | 35 | SMC |
| ES5FC | 下载 | 5.0 | 300 | 150 | 1.30 | 5.0 | 5 | 35 | SMC |
| ES5GC | 下载 | 5.0 | 400 | 150 | 1.3 | 5.0 | 5.0 | 35 | SMC |
| ES5JC | 下载 | 5.0 | 600 | 150 | 1.70 | 5.0 | 5 | 35 | SMC |
| MUR540M2 | 下载 | 5.0 | 400 | 60 | 1.25 | 5.0 | 1.0 | 35 | TO-252 |
