标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|
| EM3DC | 下载 | 3.0 | 200 | 100 | 0.875 | 3.0 | 10 | 25 | SMC |

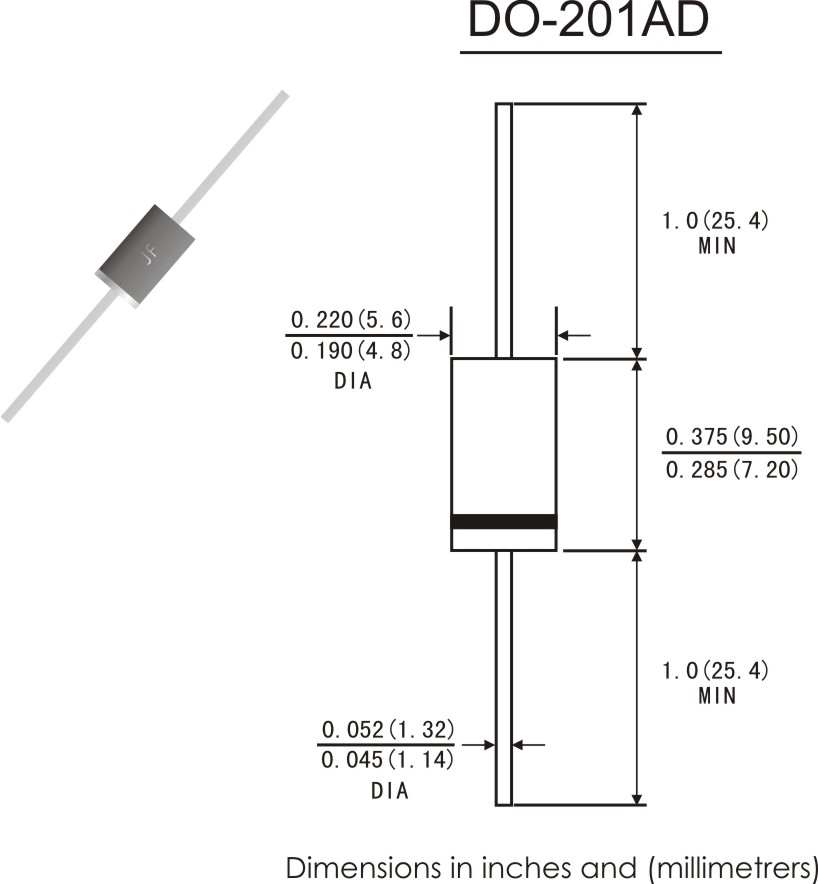

| MUR405 | 下载 | 4.0 | 50 | 150 | 1.0 | 4.0 | 5 | 45 | DO-201AD |
| MUR410 | 下载 | 4.0 | 100 | 150 | 1.0 | 4.0 | 5 | 45 | DO-201AD |
| MUR420 | 下载 | 4.0 | 200 | 150 | 1.0 | 4.0 | 5 | 45 | DO-201AD |
| MUR430 | 下载 | 4.0 | 300 | 150 | 1.28 | 4.0 | 5 | 50 | DO-201AD |
| MUR440 | 下载 | 4.0 | 400 | 150 | 1.28 | 4.0 | 5 | 50 | DO-201AD |
| MUR450 | 下载 | 4.0 | 500 | 150 | 1.28 | 4.0 | 5 | 50 | DO-201AD |
| MUR460 | 下载 | 4.0 | 600 | 150 | 1.28 | 4.0 | 5 | 50 | DO-201AD |
| MURS460C | 下载 | 4.0 | 600 | 125 | 1.28 | 4.0 | 2 | 50 | SMC |
| MURS4100C | 下载 | 4.0 | 1000 | 125 | 1.70 | 4.0 | 2 | 75 | SMC |

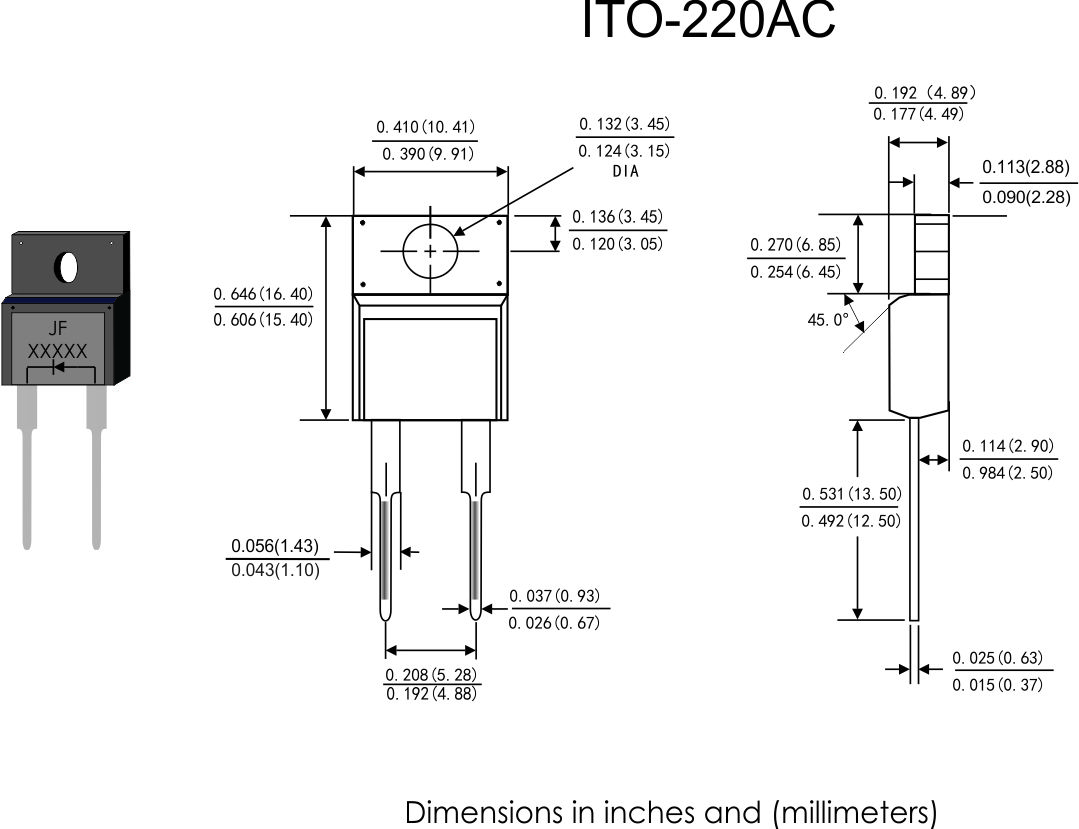

| MUR520 | 下载 | 5.0 | 200 | 60 | 0.975 | 5.0 | 5 | 35 | TO-220AC |
| MUR540 | 下载 | 5.0 | 400 | 60 | 1.3 | 5.0 | 5 | 35 | TO-220AC |
| MUR560 | 下载 | 5.0 | 600 | 60 | 1.7 | 5.0 | 5 | 35 | TO-220AC |
| MURF520 | 下载 | 5.0 | 200 | 60 | 0.975 | 5.0 | 5 | 35 | ITO-220AC |
| MURF540 | 下载 | 5.0 | 400 | 60 | 1.3 | 5.0 | 5 | 35 | ITO-220AC |
| MURF560 | 下载 | 5.0 | 600 | 60 | 1.7 | 5.0 | 5 | 35 | ITO-220AC |
| MURS560C | 下载 | 5.0 | 600 | 150 | 1.28 | 5.0 | 2 | 60 | SMC |
| SF51 | 下载 | 5.0 | 50 | 150 | 0.95 | 5.0 | 5.0 | 35 | DO-201AD |
| SF52 | 下载 | 5.0 | 100 | 150 | 0.95 | 5.0 | 5.0 | 35 | DO-201AD |
| SF53 | 下载 | 5.0 | 150 | 150 | 0.95 | 5.0 | 5.0 | 35 | DO-201AD |
