标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|

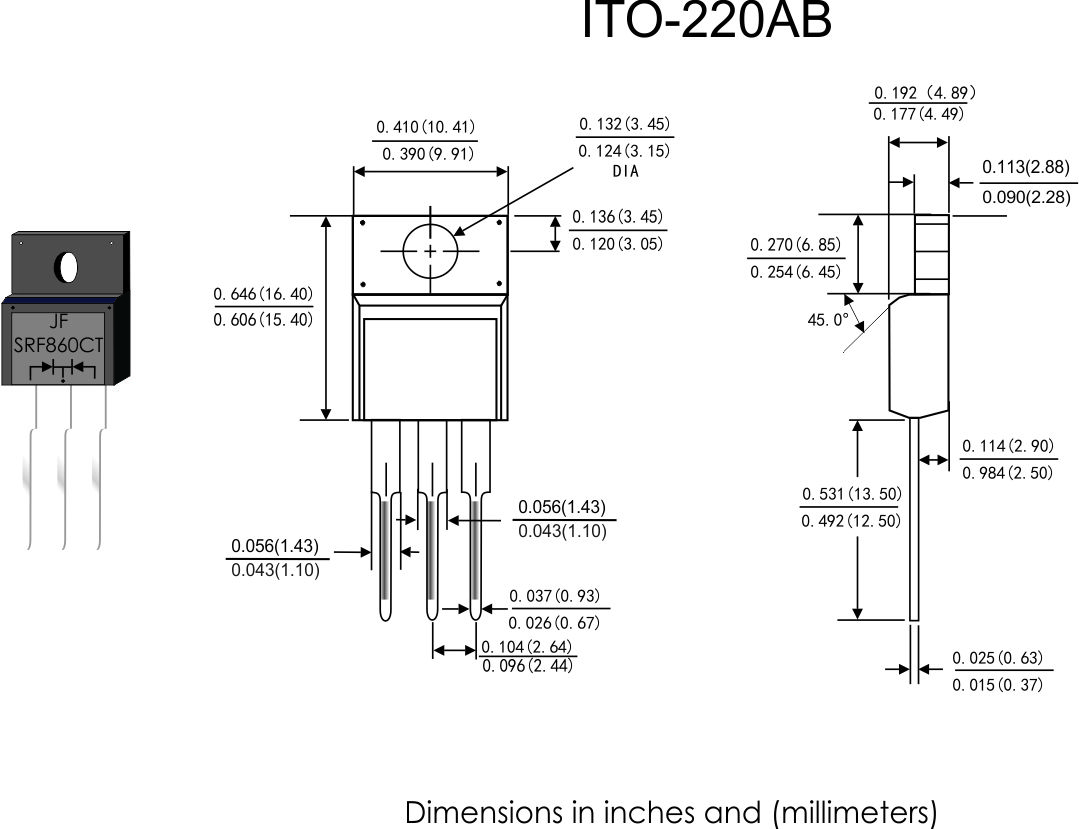

| SRF1030CT | 下载 | 10.0 | 30 | 150 | 0.60 | 5.0 | 100 | ITO-220AB | |
| SRF1040CT | 下载 | 10.0 | 40 | 150 | 0.60 | 5.0 | 100 | ITO-220AB | |
| SRF1045CT | 下载 | 10.0 | 45 | 150 | 0.60 | 5.0 | 100 | ITO-220AB | |
| SRF1060CT | 下载 | 10.0 | 60 | 150 | 0.75 | 5.0 | 100 | ITO-220AB | |
| SRF10100CT | 下载 | 10.0 | 100 | 150 | 0.85 | 5.0 | 30 | ITO-220AB | |
| SRF10150CT | 下载 | 10.0 | 150 | 150 | 0.90 | 5.0 | 30 | ITO-220AB | |
| SRF10200CT | 下载 | 10.0 | 200 | 150 | 0.95 | 5.0 | 30 | ITO-220AB | |
| SRF10250CT | 下载 | 10.0 | 250 | 120 | 0.90 | 5.0 | 5 | ITO-220AB | |

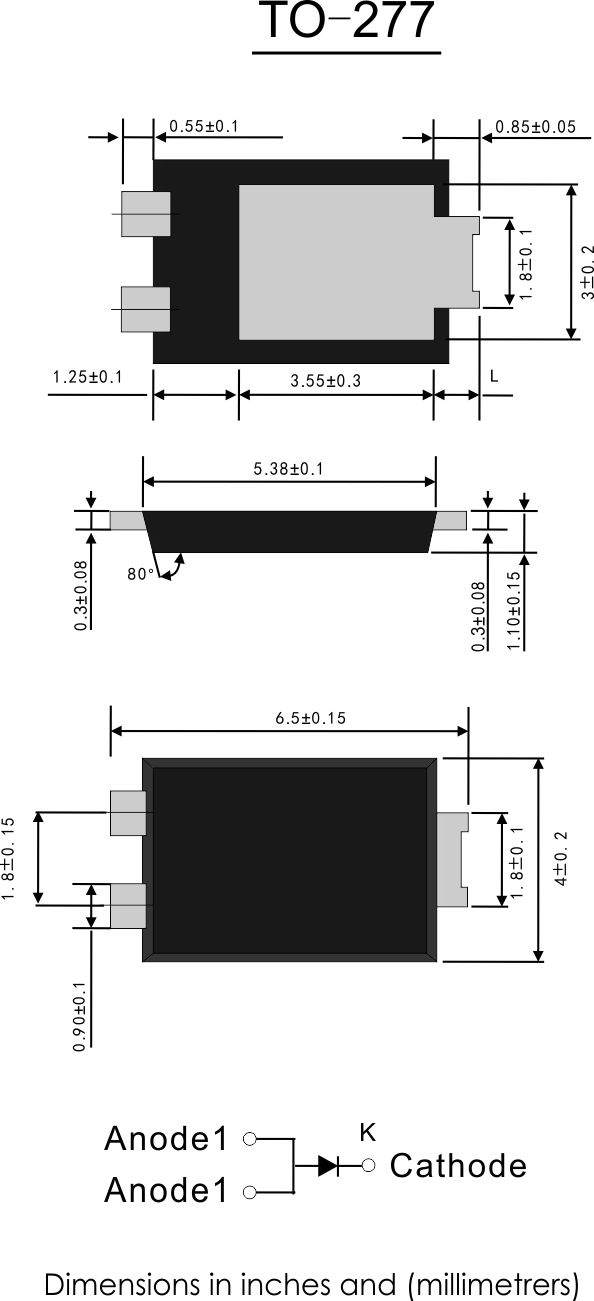

| SP10100 | 下载 | 10.0 | 100 | 120 | 0.85 | 10.0 | 20 | TO-277 | |
| SP10150 | 下载 | 10.0 | 150 | 120 | 0.90 | 10.0 | 20 | TO-277 | |
| SP10200 | 下载 | 10.0 | 200 | 180 | 0.90 | 10.0 | 5 | TO-277 | |
| SR10150M3 | 下载 | 10.0 | 150 | 150 | 0.90 | 10.0 | 5 | TO-252(DPAK) | |
| SR10200M3 | 下载 | 10.0 | 200 | 150 | 0.95 | 10.0 | 5 | TO-252(DPAK) | |
| SR10300M3 | 下载 | 10.0 | 300 | 150 | 0.90 | 10.0 | 5 | TO-252(DPAK) | |
| SS1020B | 下载 | 10.0 | 200 | 150 | 0.90 | 10.0 | 5 | SMB(DO-214AA) | |
| SR10300 | 下载 | 10.0 | 300 | 150 | 0.90 | 10.0 | 5 | TO-220AC | |
| SRF10300 | 下载 | 10.0 | 300 | 150 | 0.90 | 10.0 | 5 | ITO-220AC | |
| SR10300D2 | 下载 | 10.0 | 300 | 150 | 0.90 | 10.0 | 5 | TO-263(D2PAK) | |

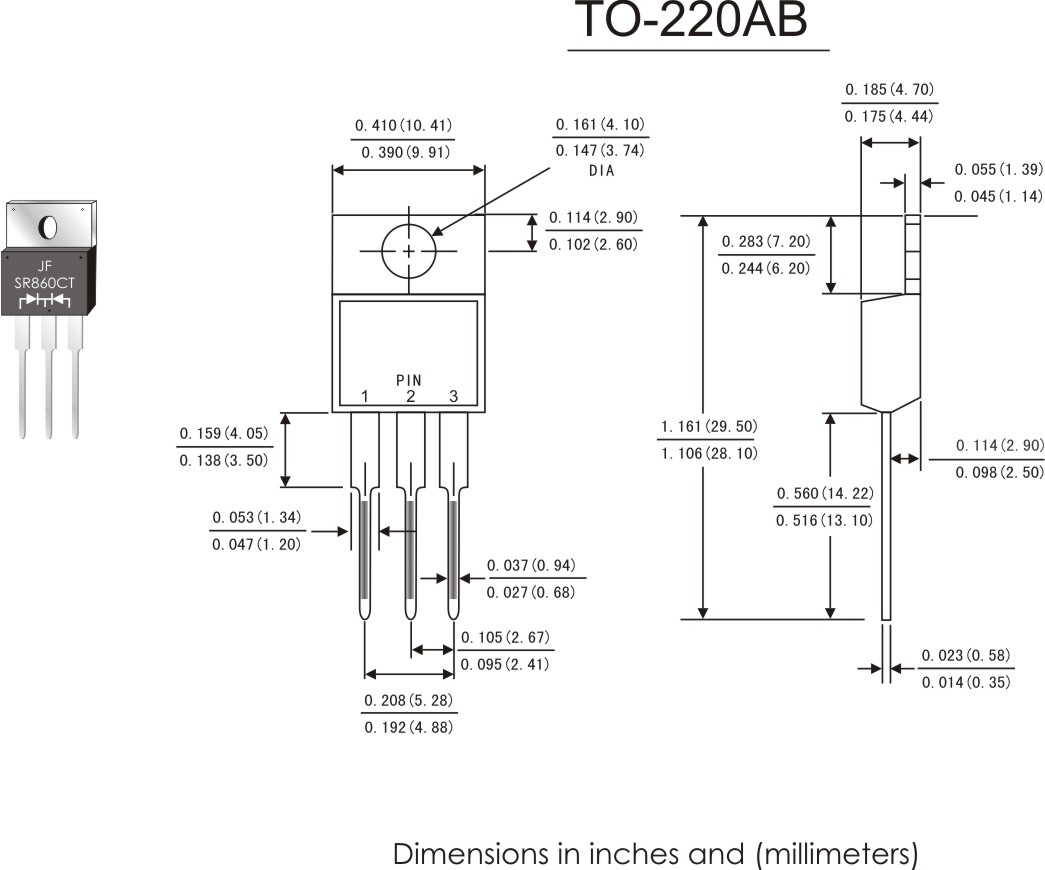

| SR10300CT | 下载 | 10.0 | 300 | 150 | 0.95 | 5.0 | 5 | TO-220AB | |
| SRF10300CT | 下载 | 10.0 | 300 | 150 | 0.95 | 5.0 | 5 | ITO-220AB |
