标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|
| SR10150D1 | 下载 | 10.0 | 150 | 150 | 0.90 | 5.0 | 5 | TO-263(D2PAK) | |
| SR10200D1 | 下载 | 10.0 | 200 | 150 | 0.95 | 5.0 | 5 | TO-263(D2PAK) | |
| SR10250D1 | 下载 | 10.0 | 250 | 120 | 0.90 | 5.0 | 5 | TO-263(D2PAK) | |
| SR1020D2 | 下载 | 10.0 | 20 | 150 | 0.60 | 10.0 | 100 | TO-263(D2PAK) | |
| SR1030D2 | 下载 | 10.0 | 30 | 150 | 0.60 | 10.0 | 100 | TO-263(D2PAK) | |
| SR1040D2 | 下载 | 10.0 | 40 | 150 | 0.60 | 10.0 | 100 | TO-263(D2PAK) | |
| SR1045D2 | 下载 | 10.0 | 45 | 150 | 0.60 | 10.0 | 100 | TO-263(D2PAK) | |
| SR1060D2 | 下载 | 10.0 | 60 | 150 | 0.75 | 10.0 | 100 | TO-263(D2PAK) | |
| SR10100D2 | 下载 | 10.0 | 100 | 150 | 0.85 | 10.0 | 30 | TO-263(D2PAK) | |
| SR10150D2 | 下载 | 10.0 | 150 | 150 | 0.90 | 10.0 | 30 | TO-263(D2PAK) | |
| SR10200D2 | 下载 | 10.0 | 200 | 150 | 0.95 | 10.0 | 30 | TO-263(D2PAK) | |
| SRF1020 | 下载 | 10.0 | 20 | 150 | 0.60 | 10.0 | 100 | ITO-220AC | |
| SRF1030 | 下载 | 10.0 | 30 | 150 | 0.60 | 10.0 | 100 | ITO-220AC | |
| SRF1040 | 下载 | 10.0 | 40 | 150 | 0.60 | 10.0 | 100 | ITO-220AC | |
| SRF1045 | 下载 | 10.0 | 45 | 150 | 0.60 | 10.0 | 100 | ITO-220AC | |
| SRF1060 | 下载 | 10.0 | 60 | 150 | 0.75 | 10.0 | 100 | ITO-220AC | |
| SRF10100 | 下载 | 10.0 | 100 | 150 | 0.85 | 10.0 | 30 | ITO-220AC | |
| SRF10150 | 下载 | 10.0 | 150 | 150 | 0.90 | 10.0 | 30 | ITO-220AC | |
| SRF10200 | 下载 | 10.0 | 200 | 150 | 0.95 | 10.0 | 30 | ITO-220AC | |

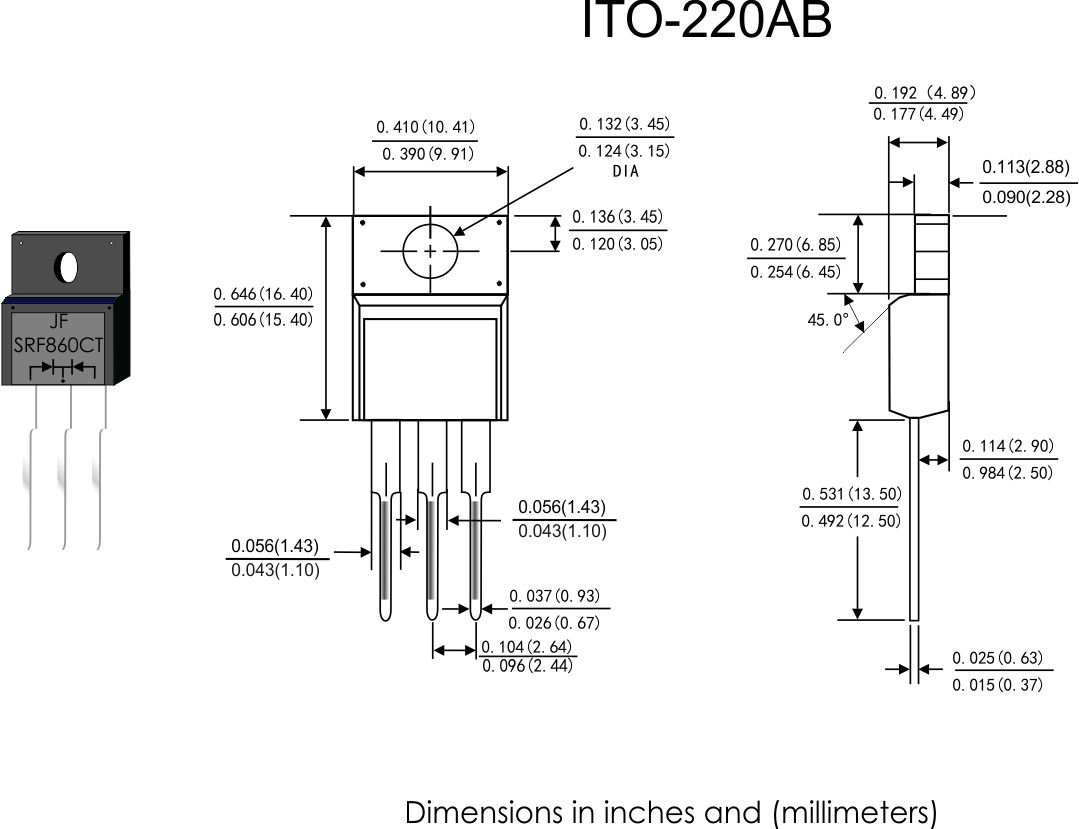

| SRF1020CT | 下载 | 10.0 | 20 | 150 | 0.60 | 5.0 | 100 | ITO-220AB |
