标题 |
规格书 |
VRRM(V) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |

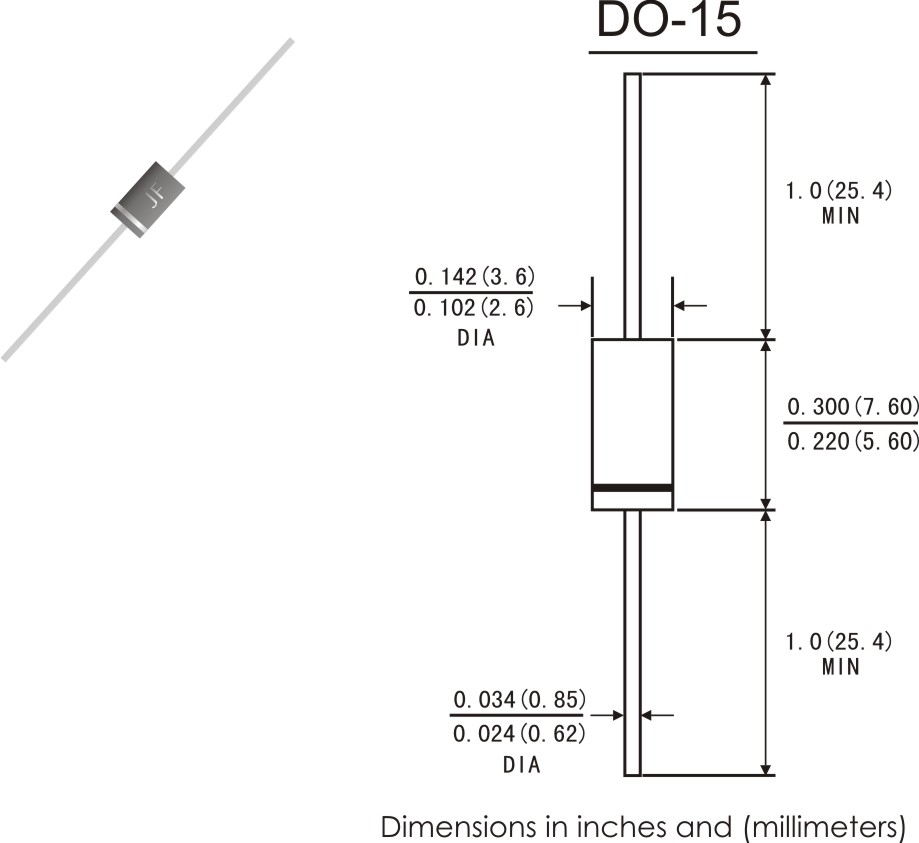

OUTLINE |
|---|---|---|---|---|---|---|---|
| RL151 | 下载 | 50 | 1.4 | 1.5 | 5 | DO-15 | |
| S2A | 下载 | 50 | 1.1 | 2.0 | 5 | SMA | |
| RL152 | 下载 | 100 | 1.4 | 1.5 | 5 | DO-15 | |
| S2B | 下载 | 100 | 1.1 | 2.0 | 5 | SMA | |
| RL153 | 下载 | 200 | 1.4 | 1.5 | 5 | DO-15 | |
| S2D | 下载 | 200 | 1.1 | 2.0 | 5 | SMA | |
| 1N5394 | 下载 | 300 | 1.1 | 1.5 | 5 | DO-15 | |
| 1N5395 | 下载 | 400 | 1.1 | 1.5 | 5 | DO-15 | |
| RL154 | 下载 | 400 | 1.4 | 1.5 | 5 | DO-15 | |
| S2G | 下载 | 400 | 1.1 | 2.0 | 5 | SMA | |
| 1N5397 | 下载 | 600 | 1.1 | 1.5 | 5 | DO-15 | |
| RL155 | 下载 | 600 | 1.4 | 1.5 | 5 | DO-15 | |
| S2J | 下载 | 600 | 1.1 | 2.0 | 5 | SMA | |
| 1N5398 | 下载 | 800 | 1.1 | 1.5 | 5 | DO-15 | |
| RL156 | 下载 | 800 | 1.4 | 1.5 | 5 | DO-15 | |
| S2K | 下载 | 800 | 1.1 | 2.0 | 5 | SMA | |
| 1N5399 | 下载 | 1000 | 1.1 | 1.5 | 5 | DO-15 | |
| RL157 | 下载 | 1000 | 1.4 | 1.5 | 5 | DO-15 | |
| S2MB | 下载 | 1000 | 1.0 | 2.0 | 5 | SMB | |
| S2M | 下载 | 1000 | 1.1 | 2.0 | 5 | SMA |
