标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|

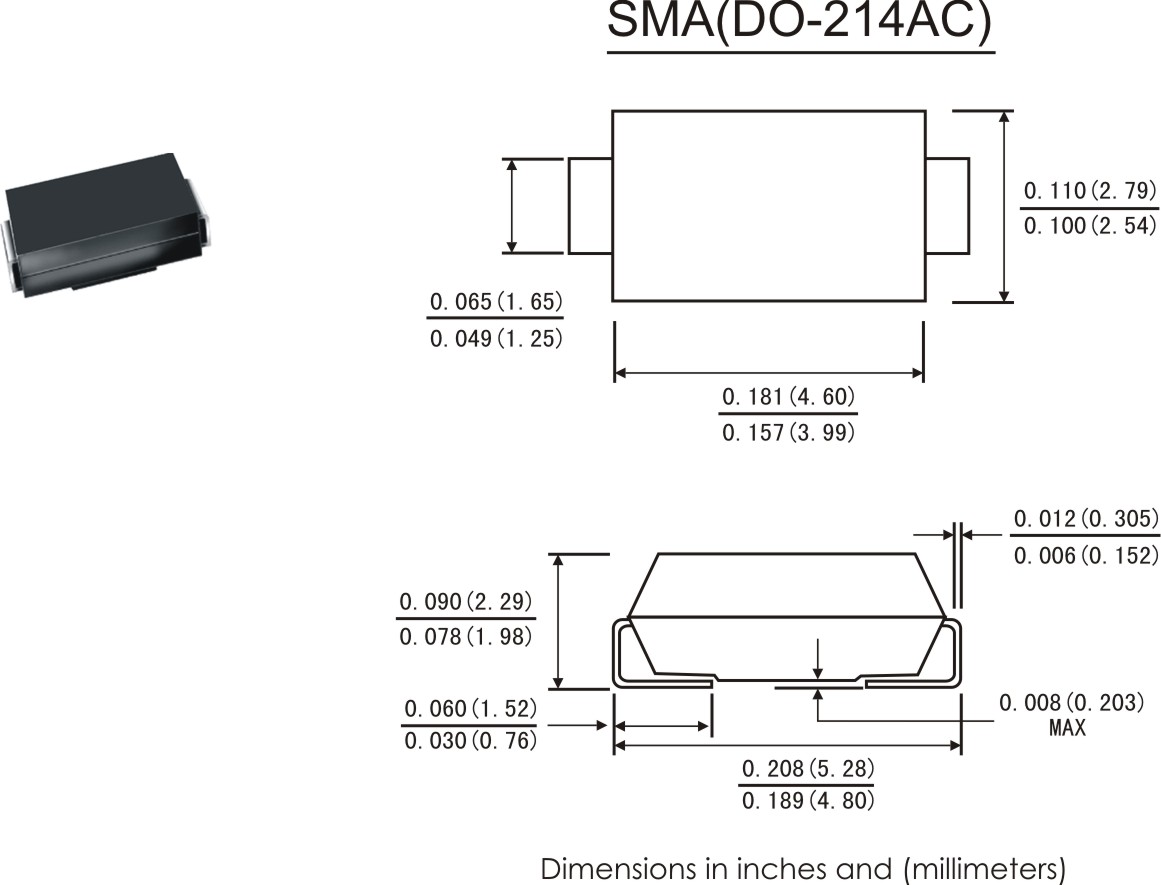

| SS32 | 下载 | 3.0 | 20 | 80 | 0.55 | 3.0 | 100 | SMA(DO-214AC) | |
| SS34 | 下载 | 3.0 | 40 | 80 | 0.55 | 3.0 | 100 | SMA(DO-214AC) | |
| SS36 | 下载 | 3.0 | 60 | 80 | 0.70 | 3.0 | 100 | SMA(DO-214AC) | |
| SS310 | 下载 | 3.0 | 100 | 80 | 0.85 | 3.0 | 5 | SMA(DO-214AC) | |
| SS315 | 下载 | 3.0 | 150 | 80 | 0.90 | 3.0 | 5 | SMA(DO-214AC) | |
| SS320 | 下载 | 3.0 | 200 | 80 | 0.95 | 3.0 | 5 | SMA(DO-214AC) | |
| SS3H4 | 下载 | 3.0 | 40 | 50 | 0.62 | 3.0 | 10 | SMA(DO-214AC) | |

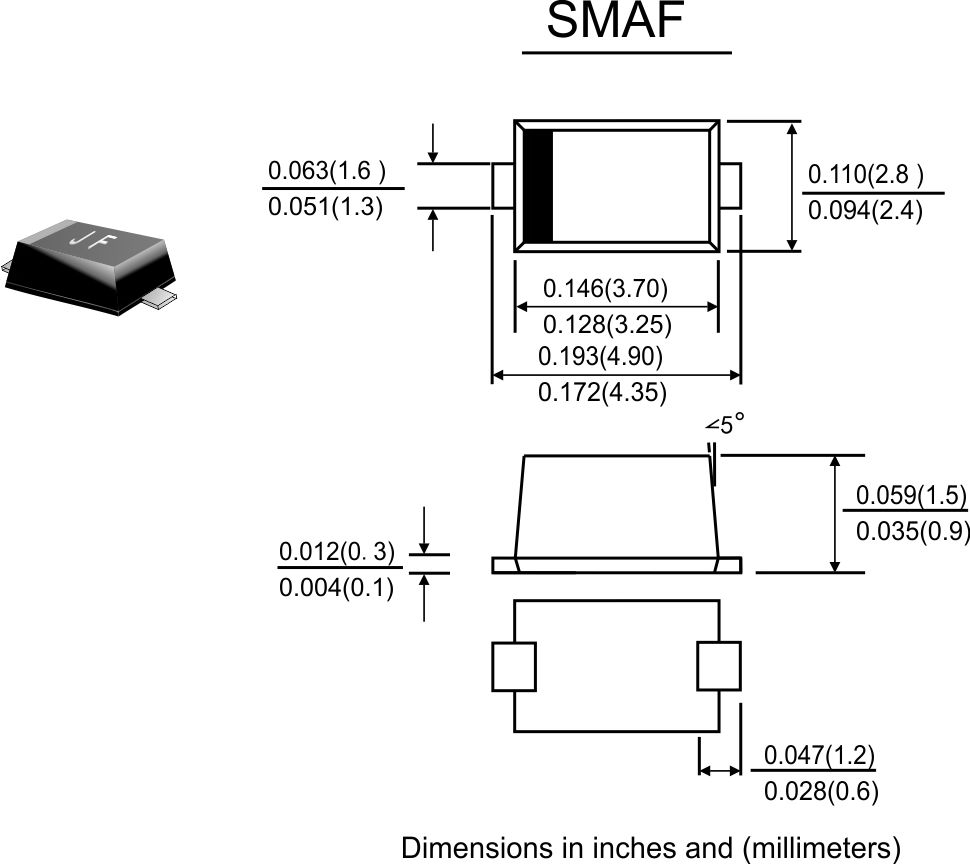

| SS32S | 下载 | 3.0 | 20 | 80 | 0.55 | 3.0 | 100 | SMAF | |
| SS34S | 下载 | 3.0 | 40 | 80 | 0.55 | 3.0 | 100 | SMAF | |
| SS36S | 下载 | 3.0 | 60 | 80 | 0.65 | 3.0 | 40 | SMAF | |
| SS310S | 下载 | 3.0 | 100 | 80 | 0.85 | 3.0 | 20 | SMAF | |
| SS315S | 下载 | 3.0 | 150 | 80 | 0.90 | 3.0 | 20 | SMAF | |
| SS320S | 下载 | 3.0 | 200 | 80 | 0.95 | 3.0 | 20 | SMAF | |
| K32 | 下载 | 3.0 | 20 | 80 | 0.55 | 3.0 | 100 | SOD-123FL | |
| K33 | 下载 | 3.0 | 30 | 80 | 0.55 | 3.0 | 100 | SOD-123FL | |
| K34 | 下载 | 3.0 | 40 | 80 | 0.55 | 3.0 | 100 | SOD-123FL | |
| K36 | 下载 | 3.0 | 60 | 80 | 0.70 | 3.0 | 100 | SOD-123FL | |
| K3A | 下载 | 3.0 | 100 | 80 | 0.85 | 3.0 | 20 | SOD-123FL | |
| K3B | 下载 | 3.0 | 150 | 80 | 0.90 | 3.0 | 20 | SOD-123FL | |
| K3D | 下载 | 3.0 | 200 | 80 | 0.95 | 3.0 | 20 | SOD-123FL |
