标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|

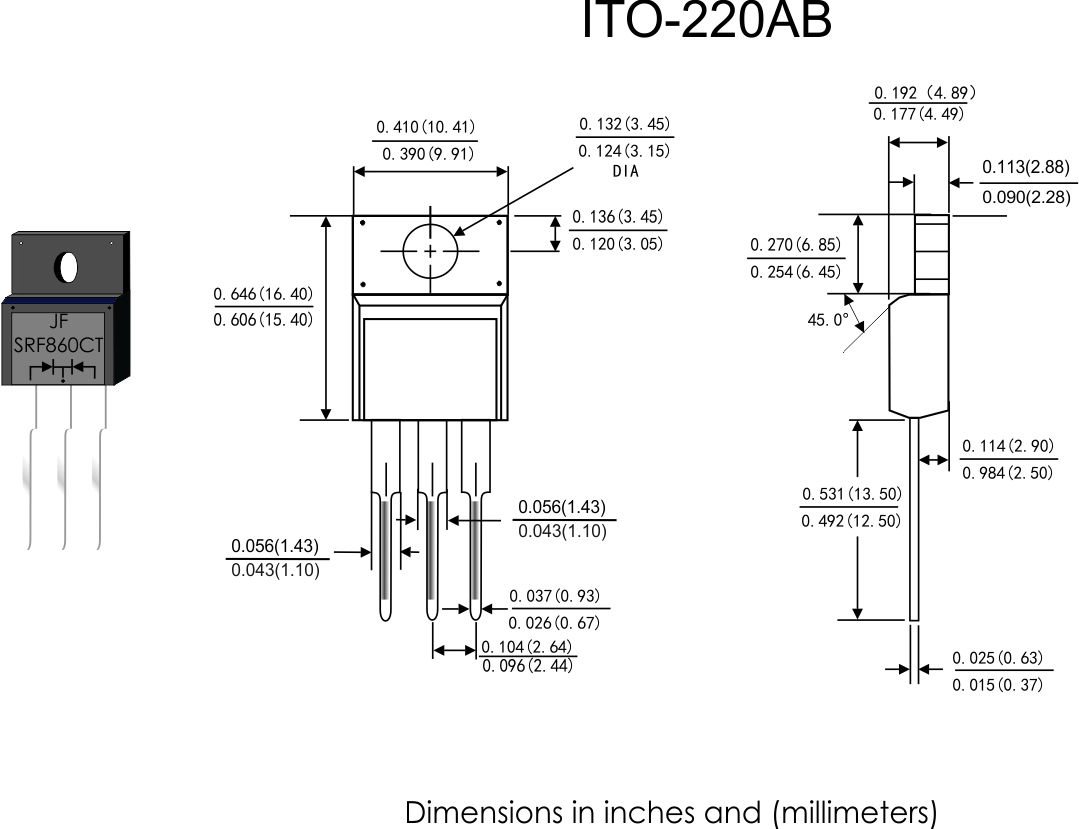

| SRF20150CT | 下载 | 20.0 | 150 | 200 | 0.90 | 10.0 | 5 | ITO-220AB | |
| SRF20200CT | 下载 | 20.0 | 200 | 200 | 0.95 | 10.0 | 5 | ITO-220AB | |
| SR20300CT | 下载 | 20.0 | 300 | 200 | 0.95 | 10.0 | 5 | TO-220AB | |
| SRF20300CT | 下载 | 20.0 | 300 | 200 | 0.95 | 10.0 | 5 | ITO-220AB | |

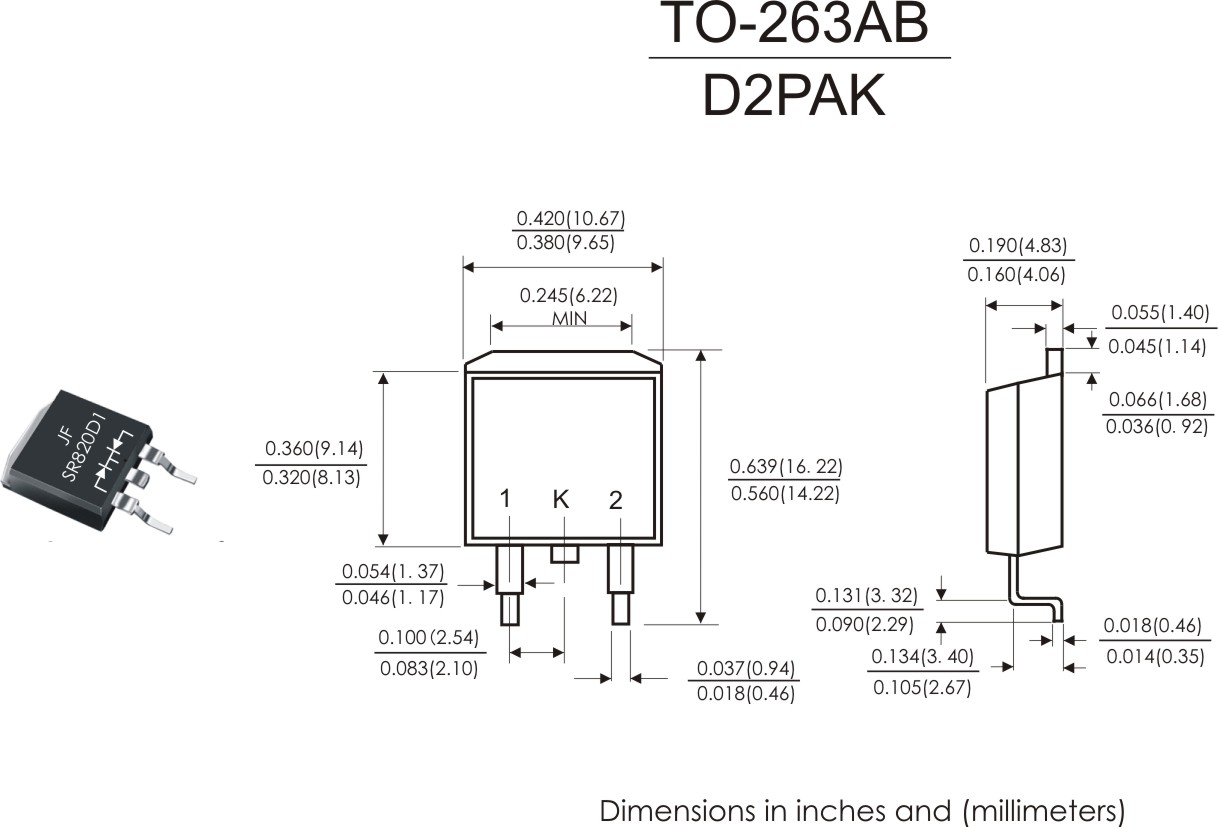

| SR20300D1 | 下载 | 20.0 | 300 | 200 | 0.95 | 10.0 | 5 | TO-263(D2PAK) | |

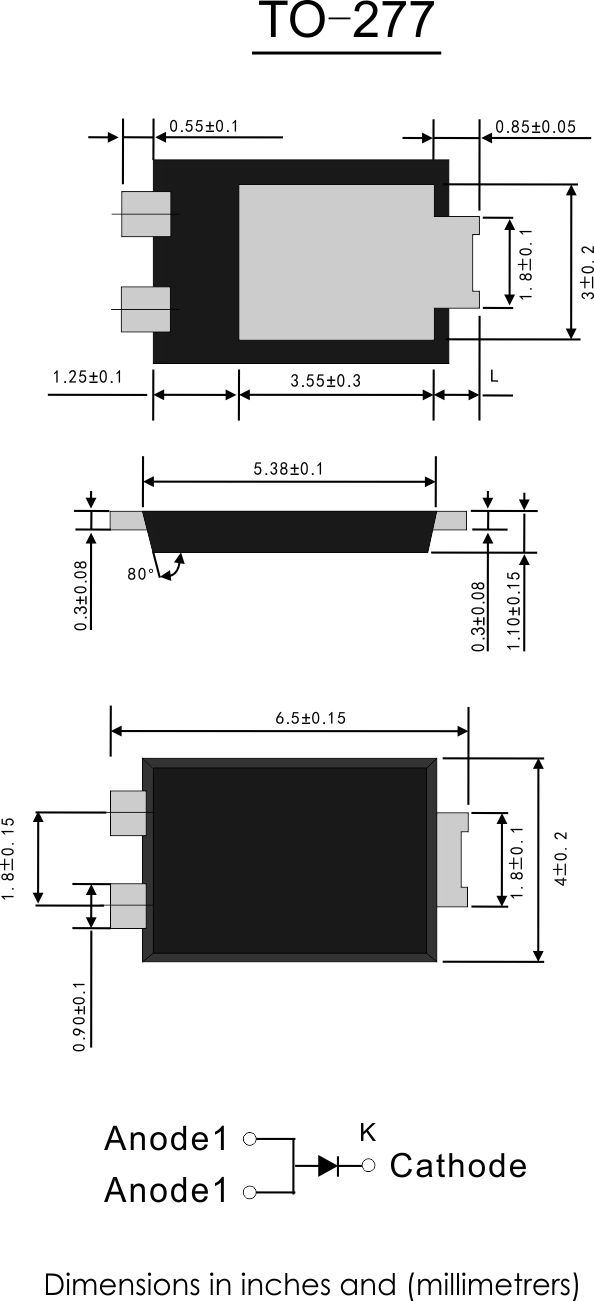

| SP20100 | 下载 | 20.0 | 100 | 200 | 0.85 | 20.0 | 20 | TO-277 | |
| SP20150 | 下载 | 20.0 | 150 | 200 | 0.90 | 20.0 | 5 | TO-277 | |
| SP20200 | 下载 | 20.0 | 200 | 200 | 0.95 | 20.0 | 5 | TO-277 | |
| SR20100M1 | 下载 | 20.0 | 100 | 200 | 0.85 | 10.0 | 20 | TO-252(DPAK) | |
| SR20150M1 | 下载 | 20.0 | 150 | 200 | 0.90 | 10.0 | 20 | TO-252(DPAK) | |
| SR20200M1 | 下载 | 20.0 | 200 | 200 | 0.95 | 10.0 | 20 | TO-252(DPAK) | |
| SR20300M3 | 下载 | 20.0 | 300 | 200 | 0.95 | 20.0 | 5 | TO-252(DPAK) | |
| SR20100M2 | 下载 | 20.0 | 100 | 200 | 0.85 | 20.0 | 20 | TO-252(DPAK) | |
| SR20100D3 | 下载 | 20.0 | 100 | 350 | 0.85 | 20.0 | 5 | TO-263(D2PAK) | |
| SR20300D2 | 下载 | 20.0 | 300 | 200 | 0.95 | 20.0 | 5 | TO-263(D2PAK) | |
| SR3045CT | 下载 | 30.0 | 45 | 250 | 0.60 | 15.0 | 100 | TO-220AB | |
| SR3060CT | 下载 | 30.0 | 60 | 250 | 0.75 | 15.0 | 100 | TO-220AB | |
| SR30100CT | 下载 | 30.0 | 100 | 250 | 0.85 | 15.0 | 10 | TO-220AB | |
| SR30150CT | 下载 | 30.0 | 150 | 250 | 0.90 | 15.0 | 20 | TO-220AB | |
| SR30200CT | 下载 | 30.0 | 200 | 250 | 0.95 | 15.0 | 5 | TO-220AB |
