标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|

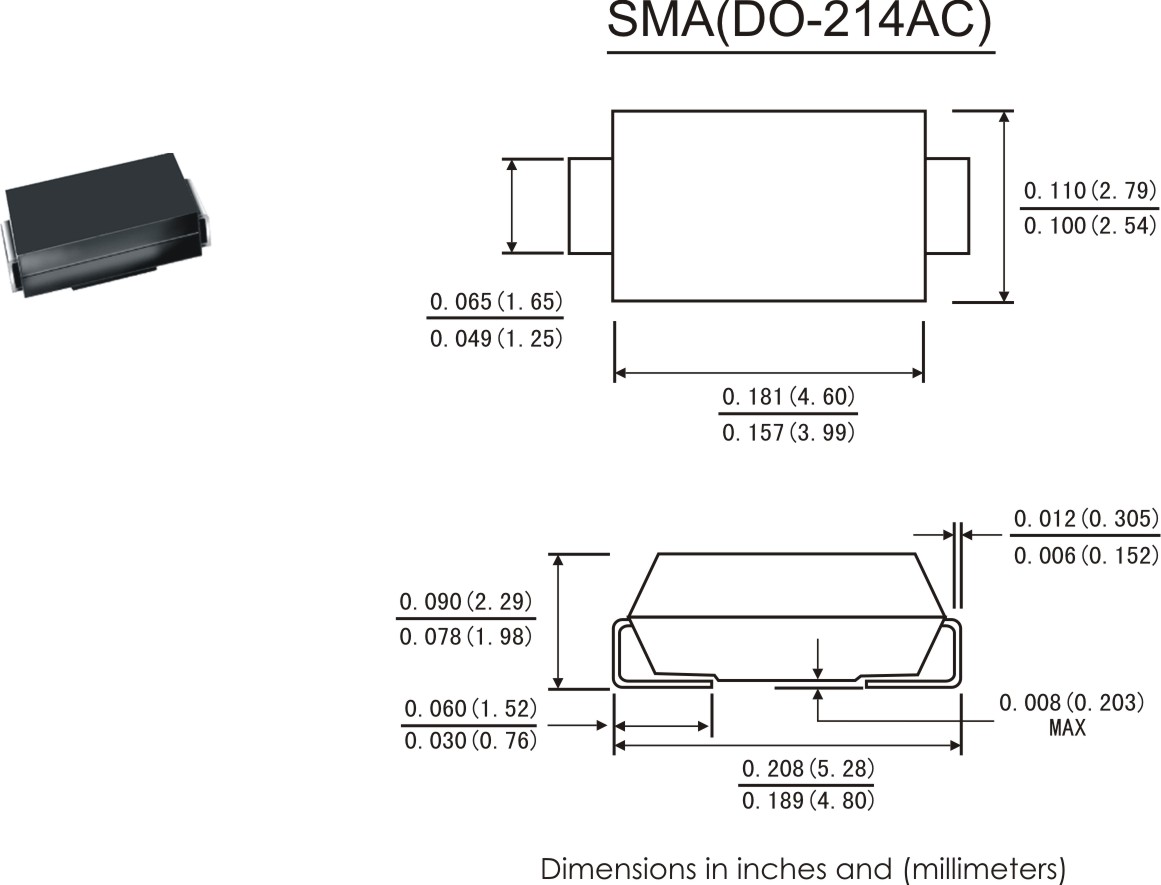

| SS53 | 查看 | 5.0 | 30 | 150 | 0.55 | 5.0 | 100 | SMA(DO-214AC) | |
| SS54 | 查看 | 5.0 | 40 | 150 | 0.55 | 5.0 | 100 | SMA(DO-214AC) | |
| SS56 | 查看 | 5.0 | 60 | 150 | 0.70 | 5.0 | 100 | SMA(DO-214AC) | |
| SS510 | 查看 | 5.0 | 100 | 150 | 0.85 | 5.0 | 20 | SMA(DO-214AC) | |
| SS515 | 查看 | 5.0 | 150 | 150 | 0.90 | 5.0 | 20 | SMA(DO-214AC) | |
| SS520 | 查看 | 5.0 | 200 | 150 | 0.95 | 5.0 | 20 | SMA(DO-214AC) | |

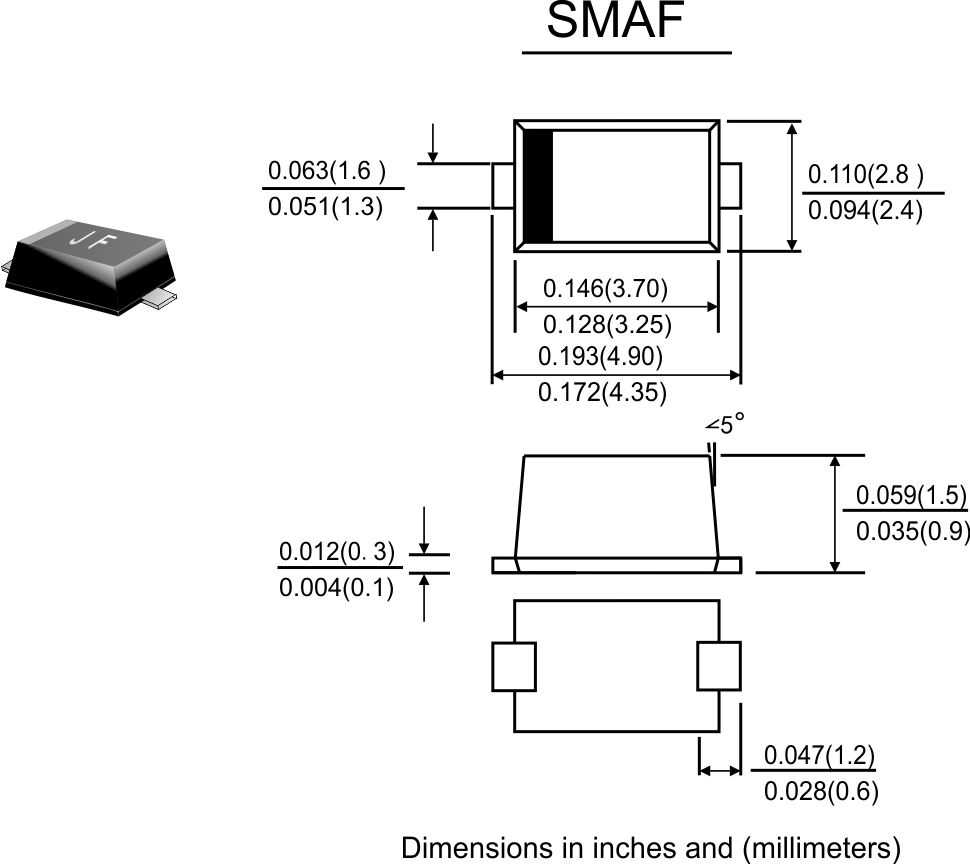

| SS52S | 查看 | 5.0 | 20 | 125 | 0.55 | 5.0 | 100 | SMAF | |
| SS54S | 查看 | 5.0 | 40 | 125 | 0.55 | 5.0 | 100 | SMAF | |
| SS56S | 查看 | 5.0 | 60 | 125 | 0.70 | 5.0 | 100 | SMAF | |
| SS510S | 查看 | 5.0 | 100 | 125 | 0.85 | 5.0 | 20 | SMAF | |
| SS515S | 查看 | 5.0 | 150 | 125 | 0.90 | 5.0 | 20 | SMAF | |
| SS520S | 查看 | 5.0 | 200 | 125 | 0.95 | 5.0 | 20 | SMAF | |

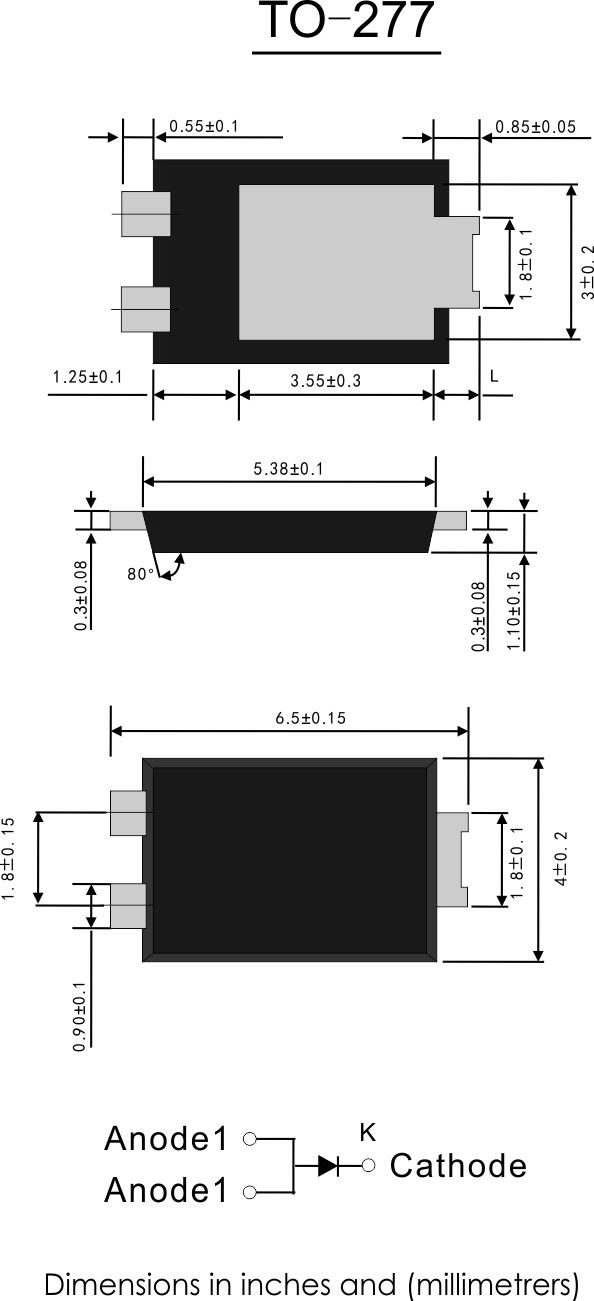

| SP545 | 查看 | 5.0 | 45 | 120 | 0.55 | 5.0 | 100 | TO-277 | |
| SP560 | 查看 | 5.0 | 60 | 120 | 0.65 | 5.0 | 100 | TO-277 | |
| SP5100 | 查看 | 5.0 | 100 | 120 | 0.85 | 5.0 | 2 | TO-277 | |
| SP5150 | 查看 | 5.0 | 150 | 120 | 0.85 | 5.0 | 20 | TO-277 | |
| SP5200 | 查看 | 5.0 | 200 | 120 | 0.90 | 5.0 | 2.0 | TO-277 | |
| SP5250 | 查看 | 5.0 | 250 | 120 | 0.95 | 5.0 | 5 | TO-277 | |
| SR5200D2 | 查看 | 5.0 | 200 | 120 | 0.88 | 5.0 | 5 | TO-263(D2PAK) | |
| SP8100 | 查看 | 8.0 | 100 | 150 | 0.82 | 8.0 | 10 | TO-277 |
