标题 |
规格书 |
VRRM(V) |
IF(AV)(A) |
VF(V) |
@IF(A) |
IR@25℃(μA) |
IFSM(A) |
trr(ns) |

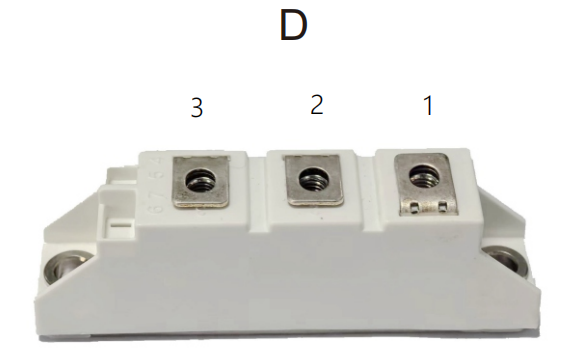

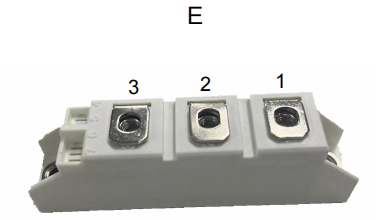

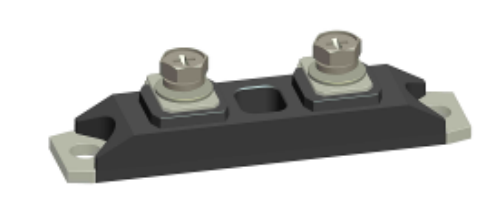

OUTLINE |

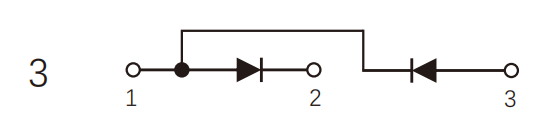

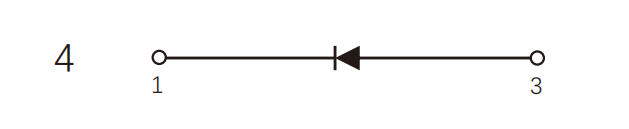

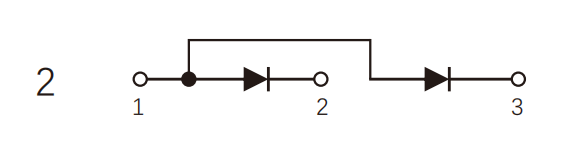

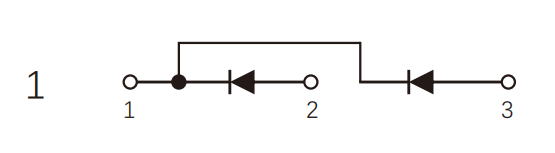

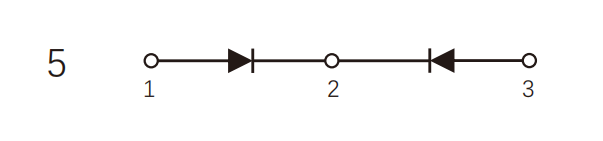

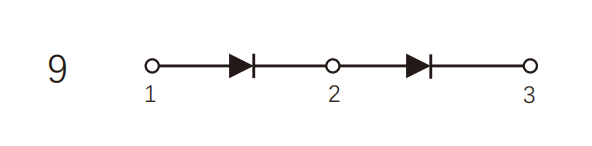

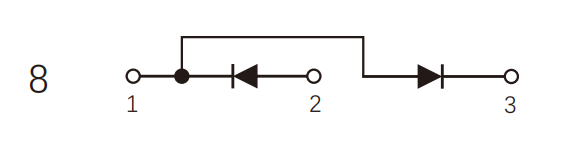

Circuit structure |
|---|---|---|---|---|---|---|---|---|---|---|
| JCCS200-100 | 下载 | 100 | 200 | 0.85 | 200 | 2500 | 25000 | C | C | |
| JCAS200-100 | 下载 | 100 | 200 | 0.85 | 200 | 2500 | 25000 | C | A | |
| JCCS200-150 | 下载 | 150 | 200 | 0.85 | 200 | 2500 | 25000 | C | C | |
| JCAS200-150 | 下载 | 150 | 200 | 0.85 | 200 | 2500 | 25000 | C | A | |
| JCAS200-200 | 下载 | 200 | 200 | 0.85 | 200 | 2500 | 25000 | C | A | |
| JCCS200-200 | 下载 | 200 | 200 | 0.85 | 200 | 2500 | 25000 | C | C | |
| JD4S200-200 | 下载 | 200 | 200 | 1.3 | 200 | 20 | 2000 | D | 4 | |
| JE1M60-80 | 下载 | 800 | 60 | 1.45 | 60 | 20 | 1200 | E | 1 | |
| JE2M60-80 | 下载 | 800 | 60 | 1.45 | 60 | 20 | 1200 | E | 2 | |
| JE3M60-80 | 下载 | 800 | 60 | 1.45 | 60 | 20 | 1200 | E | 3 | |
| JE4M60-80 | 下载 | 800 | 60 | 1.45 | 60 | 20 | 1200 | E | 4 | |
| JE1M60-120 | 下载 | 1200 | 60 | 1.45 | 60 | 20 | 1200 | E | 1 | |
| JE2M60-120 | 下载 | 1200 | 60 | 1.45 | 60 | 20 | 1200 | E | 2 | |
| JD1M100-160 | 下载 | 1600 | 100 | 1.30 | 100 | 10 | 2000 | D | 1 | |
| JB8F200-170 | 下载 | 1700 | 2×100 | 2.8 | 200 | 20 | 2000 | 450 | B | 8 |
| JB3M200-180 | 下载 | 1800 | 200 | 1.5 | 200 | 10 | 5000 | B | 3 | |
| JB5M200-180 | 下载 | 1800 | 200 | 1.5 | 200 | 10 | 5000 | B | 5 | |
| JB7M200-180 | 下载 | 1800 | 200 | 1.5 | 200 | 10 | 5000 | B | 7 | |
| JB8M200-180 | 下载 | 1800 | 200 | 1.5 | 200 | 10 | 5000 | B | 8 | |
| JB9M200-180 | 下载 | 1800 | 200 | 1.5 | 200 | 10 | 5000 | B | 9 |
