标题 |
规格书 |
VRRM(V) |
IF(AV)(A) |
VF(V) |
@IF(A) |
IR@25℃(μA) |
IFSM(A) |
trr(ns) |

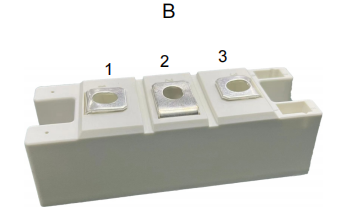

OUTLINE |

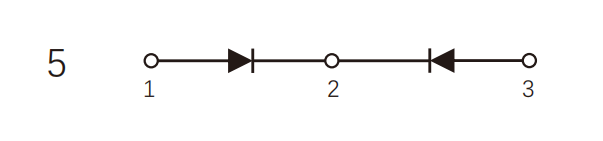

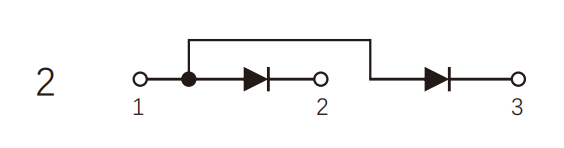

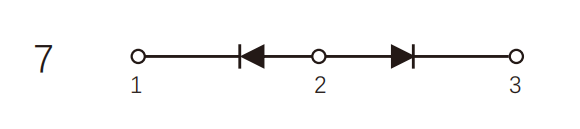

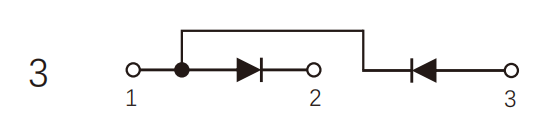

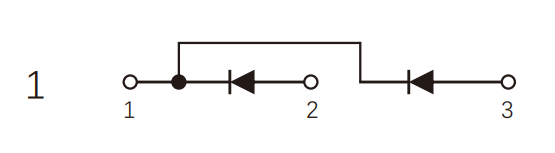

Circuit structure |
|---|---|---|---|---|---|---|---|---|---|---|
| JA5F800-20 | 下载 | 200 | 800 | 1.3 | 800 | 1000 | 6000 | A | 5 | |
| JA3M200-100 | 下载 | 1000 | 200 | 1.05 | 200 | 10 | 5000 | A | 3 | |
| JA8M200-100 | 下载 | 1000 | 200 | 1.05 | 200 | 10 | 5000 | A | 8 | |
| JA9M200-100 | 下载 | 1000 | 200 | 1.05 | 200 | 10 | 5000 | A | 9 | |
| JA3M200-120 | 下载 | 1200 | 200 | 1.05 | 200 | 10 | 5000 | A | 3 | |
| JA8M200-120 | 下载 | 1200 | 200 | 1.05 | 200 | 10 | 5000 | A | 8 | |
| JA9M200-120 | 下载 | 1200 | 200 | 1.05 | 200 | 10 | 5000 | A | 9 | |
| JB1F200-120 | 下载 | 1200 | 200 | 2.0 | 200 | 20 | 1800 | 200 | B | 1 |
| JB2F200-120 | 下载 | 1200 | 200 | 2.0 | 200 | 20 | 1800 | 200 | B | 2 |
| JB3F200-120 | 下载 | 1200 | 200 | 2.0 | 200 | 20 | 1800 | 200 | B | 3 |
| JB5F200-120 | 下载 | 1200 | 200 | 2.0 | 200 | 20 | 1800 | 200 | B | 5 |
| JB7F200-120 | 下载 | 1200 | 200 | 2.0 | 200 | 20 | 1800 | 200 | B | 7 |
| JB1F300-120 | 下载 | 1200 | 300 | 2.25 | 300 | 5000 | 2500 | 220 | B | 1 |
| JB2F300-120 | 下载 | 1200 | 300 | 2.25 | 300 | 5000 | 2500 | 220 | B | 2 |
| JA3M200-140 | 下载 | 1400 | 200 | 1.05 | 200 | 10 | 5000 | A | 3 | |
| JA8M200-140 | 下载 | 1400 | 200 | 1.05 | 200 | 10 | 5000 | A | 8 | |
| JA9M200-140 | 下载 | 1400 | 200 | 1.05 | 200 | 10 | 5000 | A | 9 | |
| JA3M200-160 | 下载 | 1600 | 200 | 1.05 | 200 | 10 | 5000 | A | 3 | |
| JA8M200-160 | 下载 | 1600 | 200 | 1.05 | 200 | 10 | 5000 | A | 8 | |
| JA9M200-160 | 下载 | 1600 | 200 | 1.05 | 200 | 10 | 5000 | A | 9 |
