标题 |
规格书 |
VRRM(V) |
IF(AV)(A) |
VF(V) |
@IF(A) |
IR@25℃(μA) |
IFSM(A) |
trr(ns) |
OUTLINE |

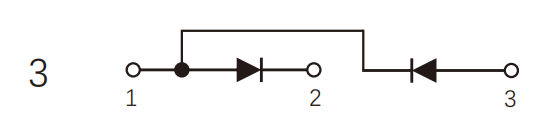

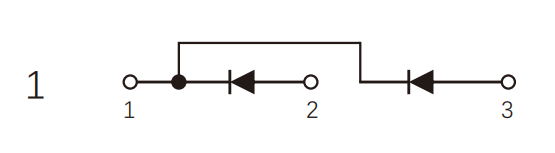

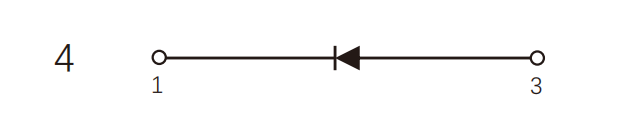

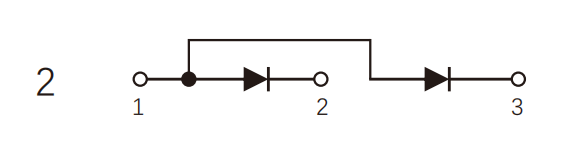

Circuit structure |
|---|---|---|---|---|---|---|---|---|---|---|
| JA3M90-80 | 下载 | 800 | 90 | 1.05 | 90 | 20 | 2000 | A | 3 | |
| JA4M90-80 | 下载 | 800 | 90 | 1.05 | 90 | 20 | 2000 | A | 4 | |
| JK2F200-120 | 下载 | 1200 | 2×100 | 2.0 | 100 | 10 | 900 | 150 | SOT-227 | K2 |
| JK4SCB40-120 | 下载 | 1200 | 40 | 1.8 | 40 | 100 | 250 | SOT-227 | K4 | |
| JK2SC80-120 | 下载 | 1200 | 2×40 | 1.8 | 40 | 150 | 300 | SOT-227 | K2 | |
| JA1F300-120 | 下载 | 1200 | 300 | 2.75 | 300 | 5 | 2500 | 220 | A | 1 |
| JA2F300-120 | 下载 | 1200 | 300 | 2.75 | 300 | 5 | 2500 | 220 | A | 2 |
| JA3F300-120 | 下载 | 1200 | 300 | 2.75 | 300 | 5 | 2500 | 220 | A | 3 |
| JA1M90-120 | 下载 | 1200 | 90 | 1.05 | 90 | 20 | 2000 | A | 1 | |
| JA2M90-120 | 下载 | 1200 | 90 | 1.05 | 90 | 20 | 2000 | A | 2 | |
| JA3M90-120 | 下载 | 1200 | 90 | 1.05 | 90 | 20 | 2000 | A | 3 | |
| JA4M90-120 | 下载 | 1200 | 90 | 1.05 | 90 | 20 | 2000 | A | 4 | |
| JA1M90-160 | 下载 | 1600 | 90 | 1.05 | 90 | 20 | 2000 | A | 1 | |
| JA2M90-160 | 下载 | 1600 | 90 | 1.05 | 90 | 20 | 2000 | A | 2 | |
| JA3M90-160 | 下载 | 1600 | 90 | 1.05 | 90 | 20 | 2000 | A | 3 | |
| JA4M90-160 | 下载 | 1600 | 90 | 1.05 | 90 | 20 | 2000 | A | 4 | |
| JK2SC100-170 | 下载 | 1700 | 2×50 | 1.7 | 50 | 100 | 390 | SOT-227 | K2 | |
| JA1M90-180 | 下载 | 1800 | 90 | 1.05 | 90 | 20 | 2000 | A | 1 | |
| JA2M90-180 | 下载 | 1800 | 90 | 1.05 | 90 | 20 | 2000 | A | 2 | |
| JA3M90-180 | 下载 | 1800 | 90 | 1.05 | 90 | 20 | 2000 | A | 3 |
