标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|
| ES2BS | 查看 | 2.0 | 100 | 50 | 1.0 | 2.0 | 5 | 35 | SMAF |
| ES2DS | 查看 | 2.0 | 200 | 50 | 1.0 | 2.0 | 5 | 35 | SMAF |
| ES2GS | 查看 | 2.0 | 400 | 50 | 1.3 | 2.0 | 5 | 35 | SMAF |
| ES2JS | 查看 | 2.0 | 600 | 50 | 1.7 | 2.0 | 5 | 35 | SMAF |
| ES2A | 查看 | 2.0 | 50 | 50 | 0.95 | 2.0 | 5 | 35 | SMA |
| ES2B | 查看 | 2.0 | 100 | 50 | 0.95 | 2.0 | 5 | 35 | SMA |
| ES2D | 查看 | 2.0 | 200 | 50 | 0.95 | 2.0 | 5 | 35 | SMA |
| ES2G | 查看 | 2.0 | 400 | 50 | 1.3 | 2.0 | 5 | 35 | SMA |
| ES2J | 查看 | 2.0 | 600 | 50 | 1.7 | 2.0 | 5 | 35 | SMA |

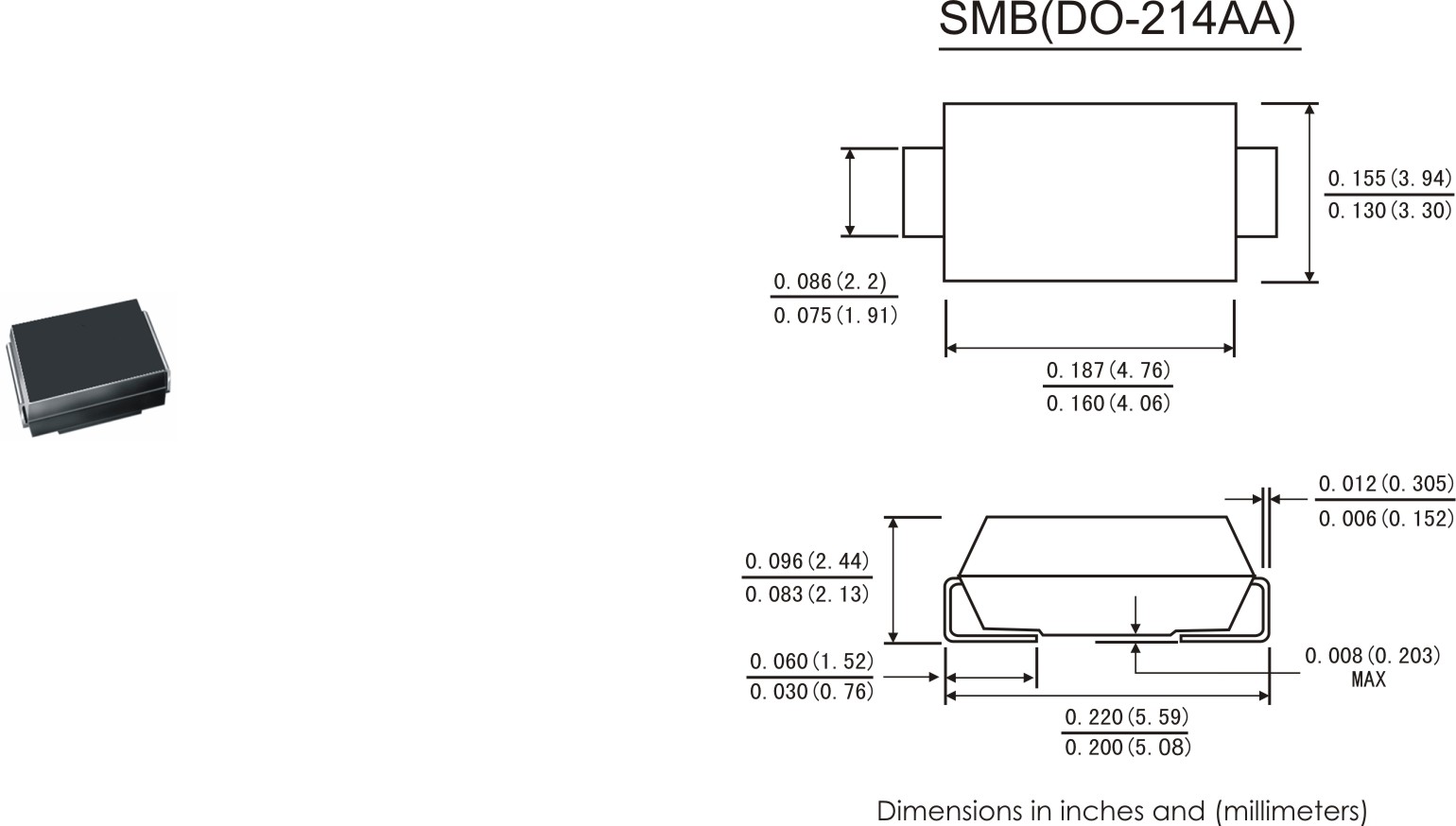

| ES2AB | 查看 | 2.0 | 50 | 50 | 0.95 | 2.0 | 5 | 35 | SMB |
| ES2BB | 查看 | 2.0 | 100 | 50 | 0.95 | 2.0 | 5 | 35 | SMB |
| ES2DB | 查看 | 2.0 | 200 | 50 | 0.95 | 2.0 | 5 | 35 | SMB |
| ES2GB | 查看 | 2.0 | 400 | 50 | 1.3 | 2.0 | 5 | 35 | SMB |
| ES2JB | 查看 | 2.0 | 600 | 50 | 1.7 | 2.0 | 5 | 35 | SMB |
| SF21 | 查看 | 2.0 | 50 | 50 | 0.95 | 2.0 | 5 | 35 | DO-15 |
| SF22 | 查看 | 2.0 | 100 | 50 | 0.95 | 2.0 | 5 | 35 | DO-15 |
| SF23 | 查看 | 2.0 | 150 | 50 | 0.95 | 2.0 | 5 | 35 | DO-15 |
| SF24 | 查看 | 2.0 | 200 | 50 | 0.95 | 2.0 | 5 | 35 | DO-15 |
| SF25 | 查看 | 2.0 | 300 | 50 | 1.3 | 2.0 | 5 | 35 | DO-15 |
| SF26 | 查看 | 2.0 | 400 | 50 | 1.3 | 2.0 | 5 | 35 | DO-15 |
