标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|
| SR2045LM3 | 下载 | 20.0 | 45 | 200 | 0.57 | 20.0 | 50 | TO-252(DPAK) | |

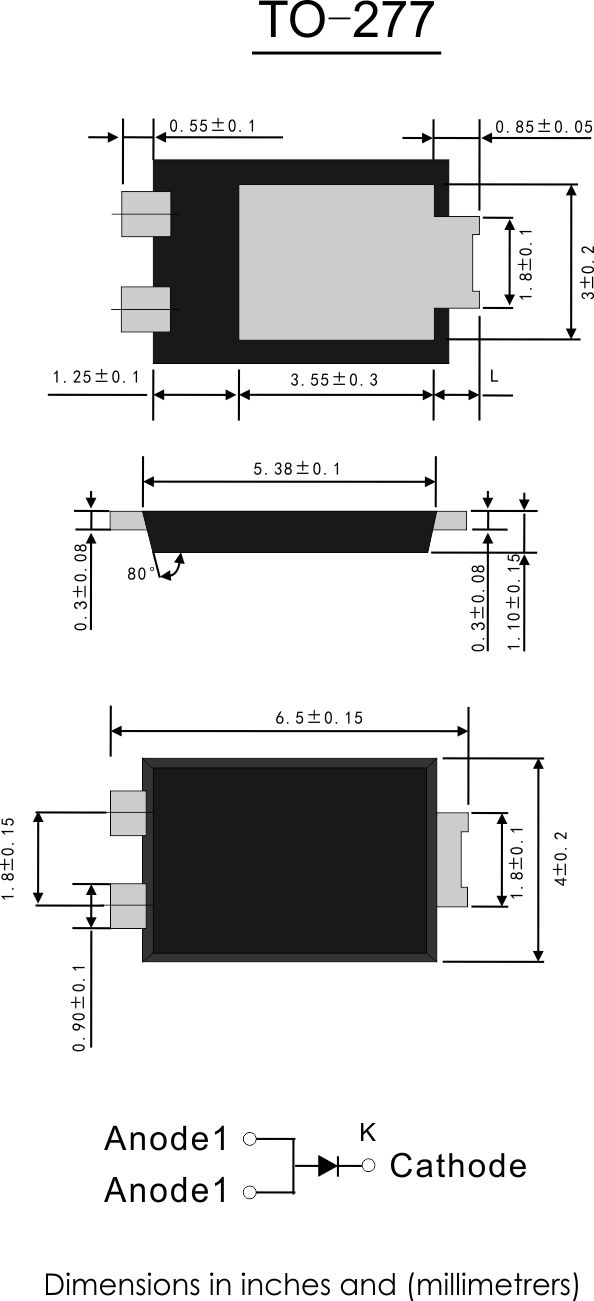

| SP20U45L | 下载 | 20.0 | 45 | 200 | 0.55 | 20.0 | 200 | TO-277 | |
| SP20U50L | 下载 | 20.0 | 50 | 200 | 0.52 | 20.0 | 200 | TO-277 | |

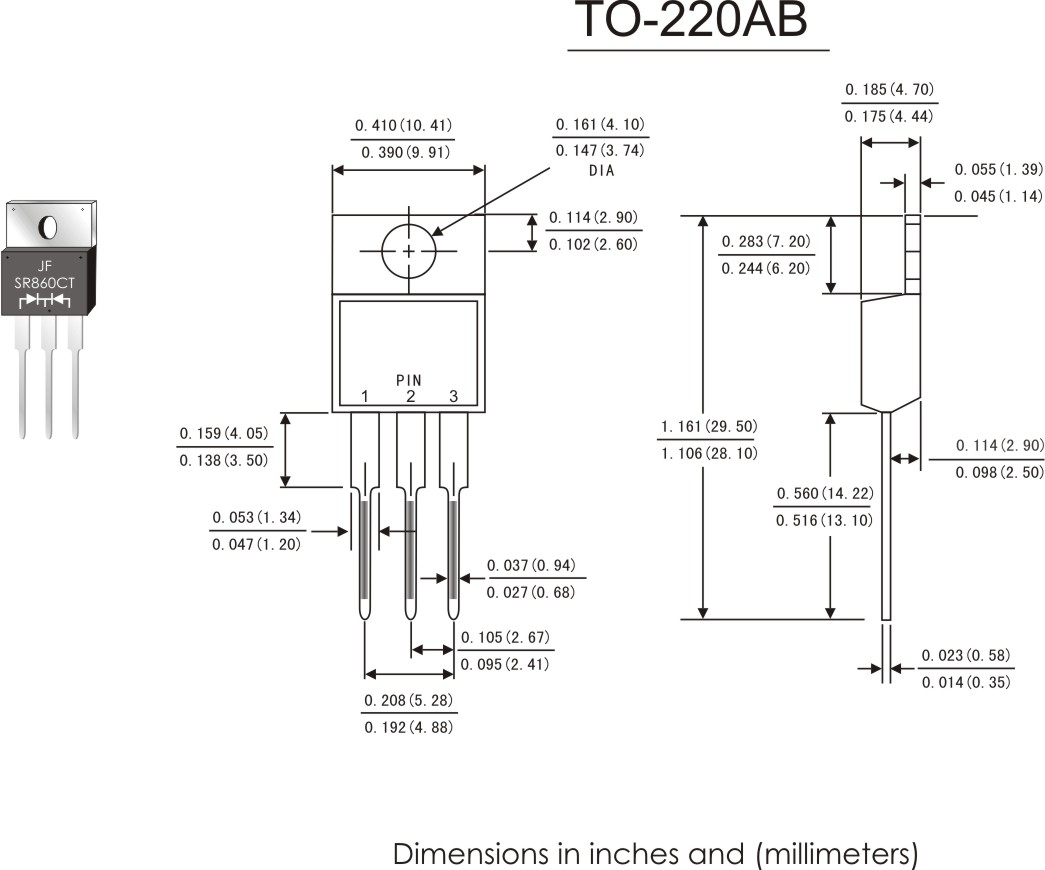

| SR2060LCT | 下载 | 20.0 | 60 | 200 | 0.55 | 10.0 | 150 | TO-220AB | |

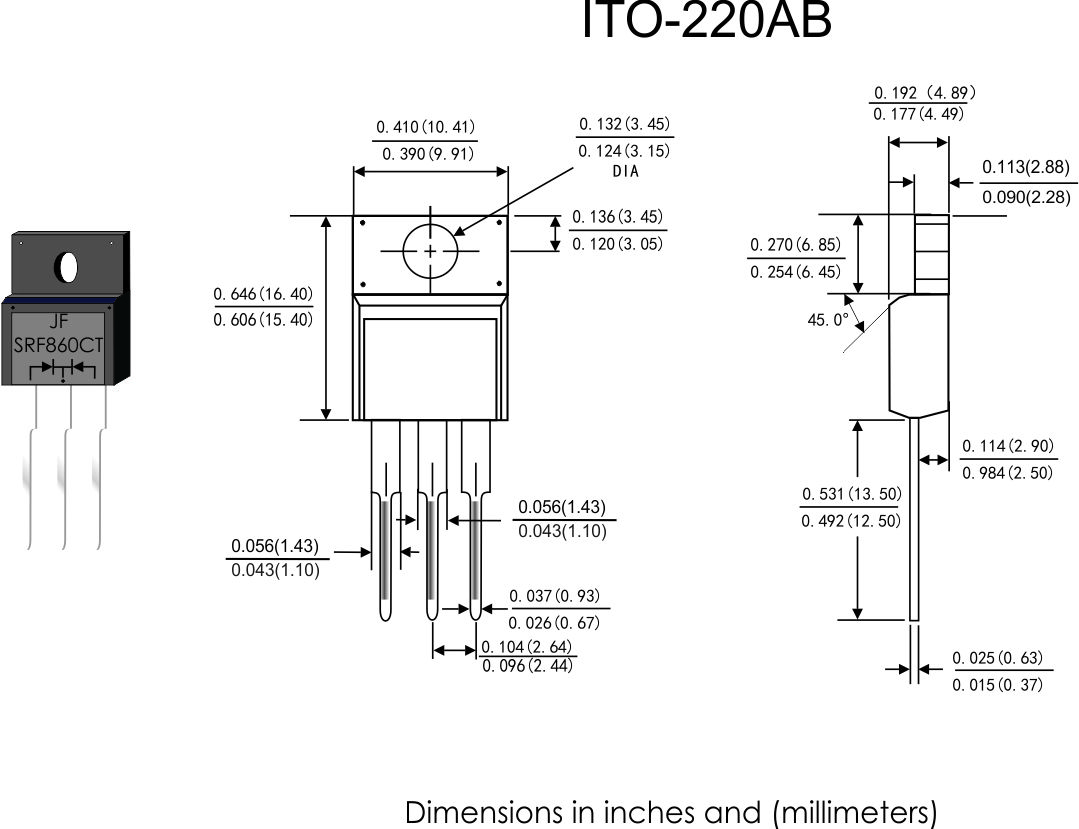

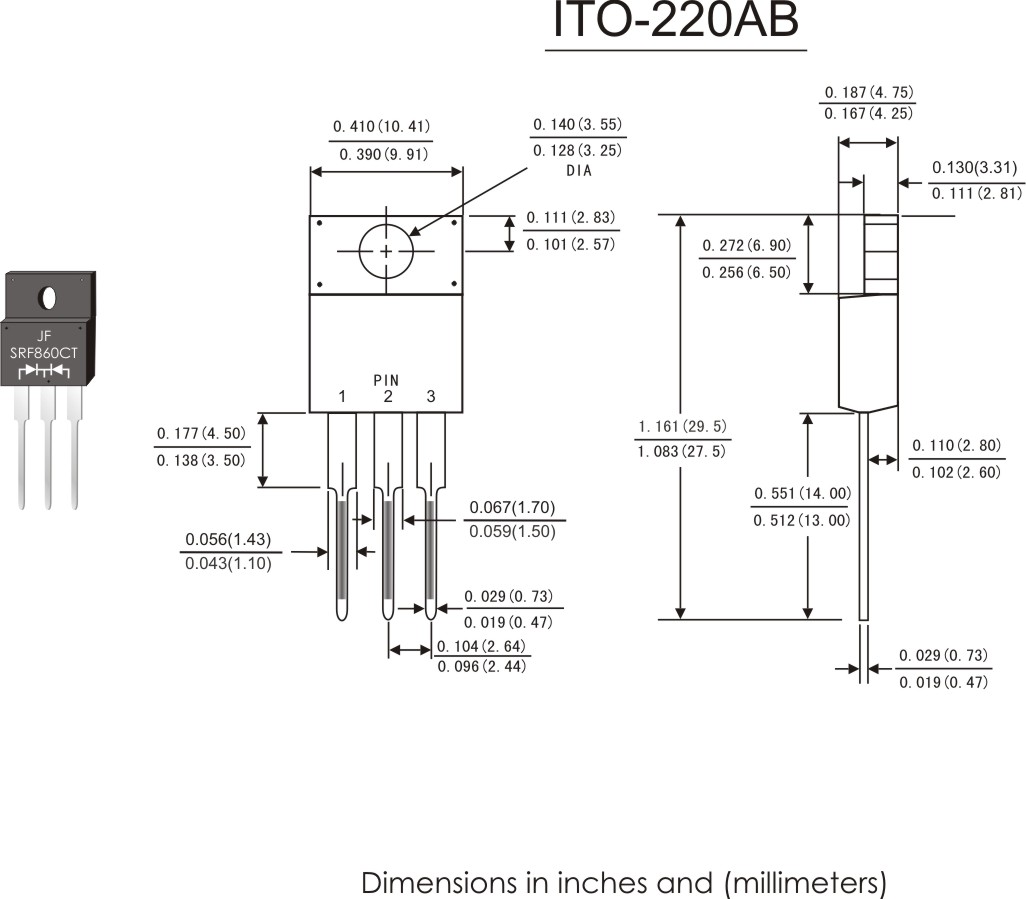

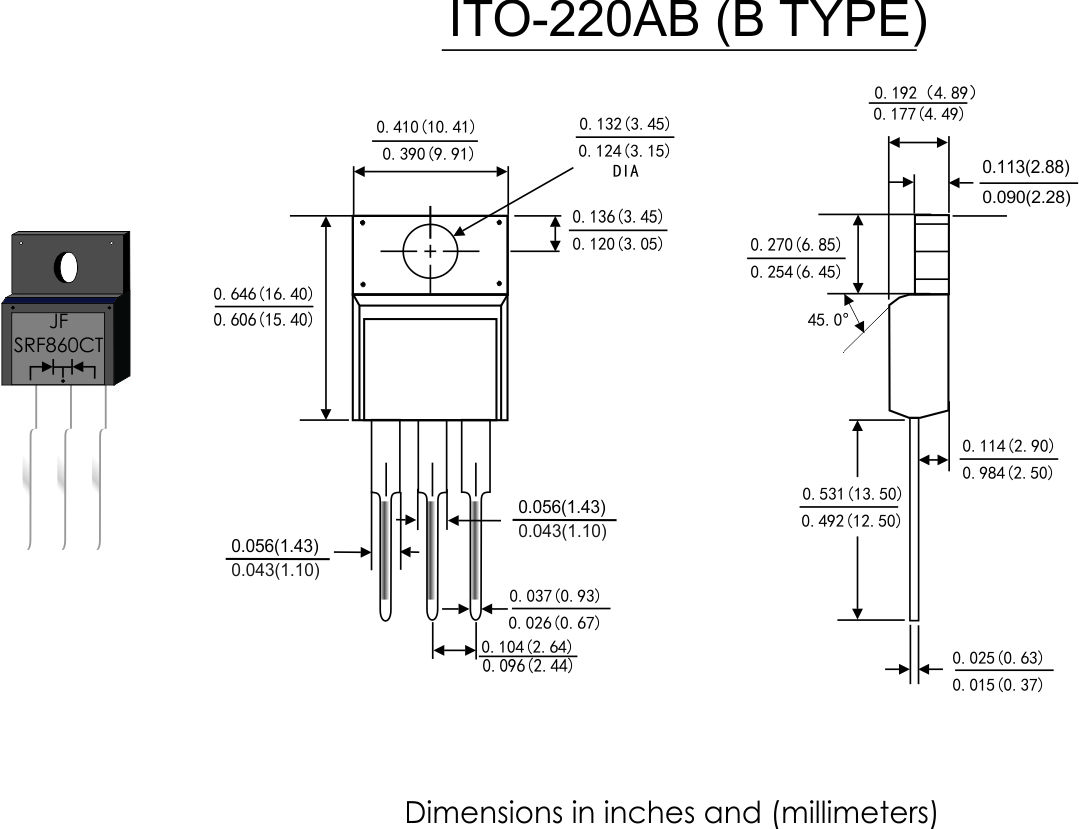

| SRF2060LCT | 下载 | 20.0 | 60 | 200 | 0.55 | 10.0 | 150 | ITO-220AB | |

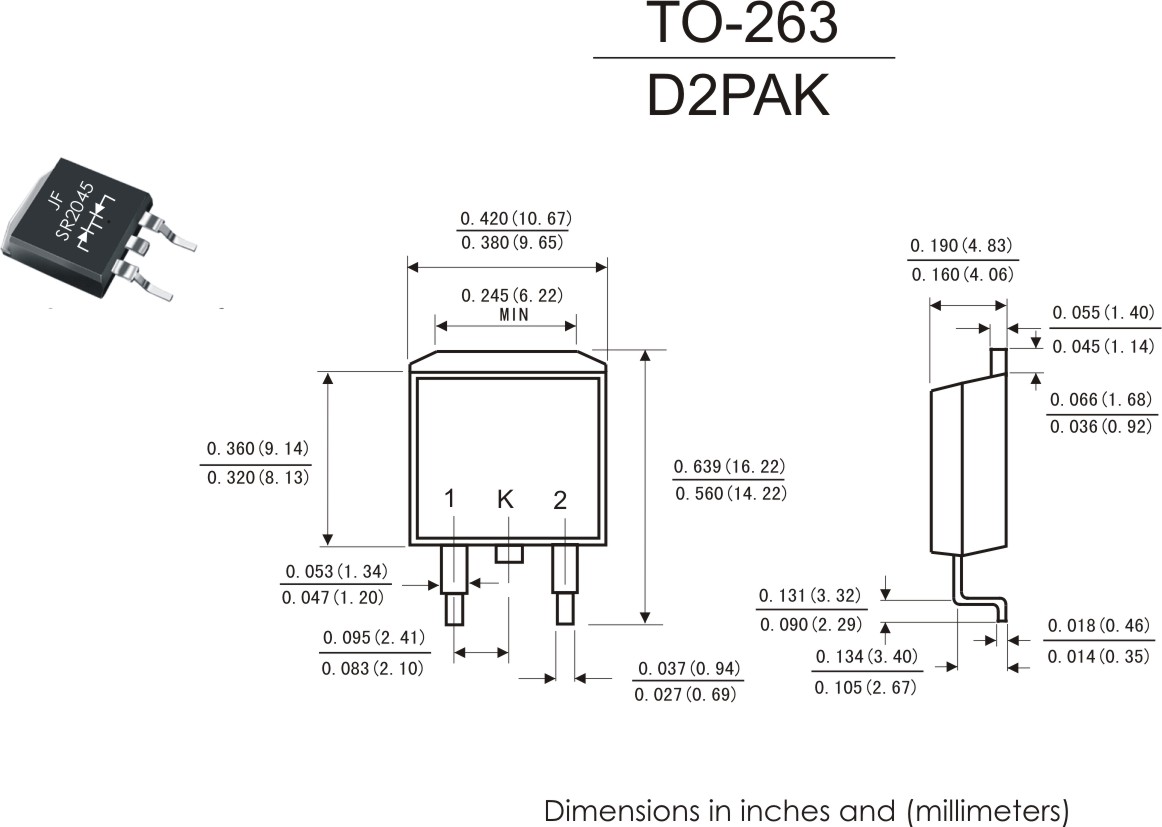

| SR2060LD1 | 下载 | 20.0 | 60 | 200 | 0.55 | 10.0 | 150 | TO-263(D2PAK) | |
| SP20U60L | 下载 | 20.0 | 60 | 200 | 0.60 | 20.0 | 150 | TO-277 | |
| SP20U60SL | 下载 | 20.0 | 60 | 250 | 0.55 | 20.0 | 150 | TO-277 | |
| SR2080LCT | 下载 | 20.0 | 80 | 200 | 0.62 | 10.0 | 200 | TO-220AB | |
| SRF2080LCT | 下载 | 20.0 | 80 | 200 | 0.62 | 10.0 | 200 | ITO-220AB | |
| SR2080LD1 | 下载 | 20.0 | 80 | 200 | 0.62 | 10.0 | 200 | TO-263(D2PAK) | |
| SR2080SLCT | 下载 | 20.0 | 80 | 300 | 0.58 | 10.0 | 100 | TO-220AB | |
| SRF2080SLCT | 下载 | 20.0 | 80 | 300 | 0.58 | 10.0 | 100 | ITO-220AB | |
| SR2080SLD1 | 下载 | 20.0 | 80 | 300 | 0.58 | 10.0 | 100 | TO-263(D2PAK) | |
| SP20U80L | 下载 | 20.0 | 80 | 200 | 0.65 | 20.0 | 100 | TO-277 | |
| SR20100LCT | 下载 | 20.0 | 100 | 350 | 0.73 | 10.0 | 40 | TO-220AB | |
| SRF20100LCT | 下载 | 20.0 | 100 | 350 | 0.73 | 10.0 | 40 | ITO-220AB | |
| SR20100LD1 | 下载 | 20.0 | 100 | 350 | 0.73 | 10.0 | 40 | TO-263(D2PAK) | |
| SR20100LM1 | 下载 | 20.0 | 100 | 200 | 0.75 | 10.0 | 50 | TO-252(DPAK) | |
| SR20100SLCT | 下载 | 20.0 | 100 | 300 | 0.65 | 10.0 | 50 | TO-220AB |
