标题 |
规格书 |
IF(A) |
VRRM(V) |
IFSM(A) |
VF(V) |
@IF(A) |
IR@25℃(uA) |
trr(ns) |
OUTLINE |
|---|---|---|---|---|---|---|---|---|---|

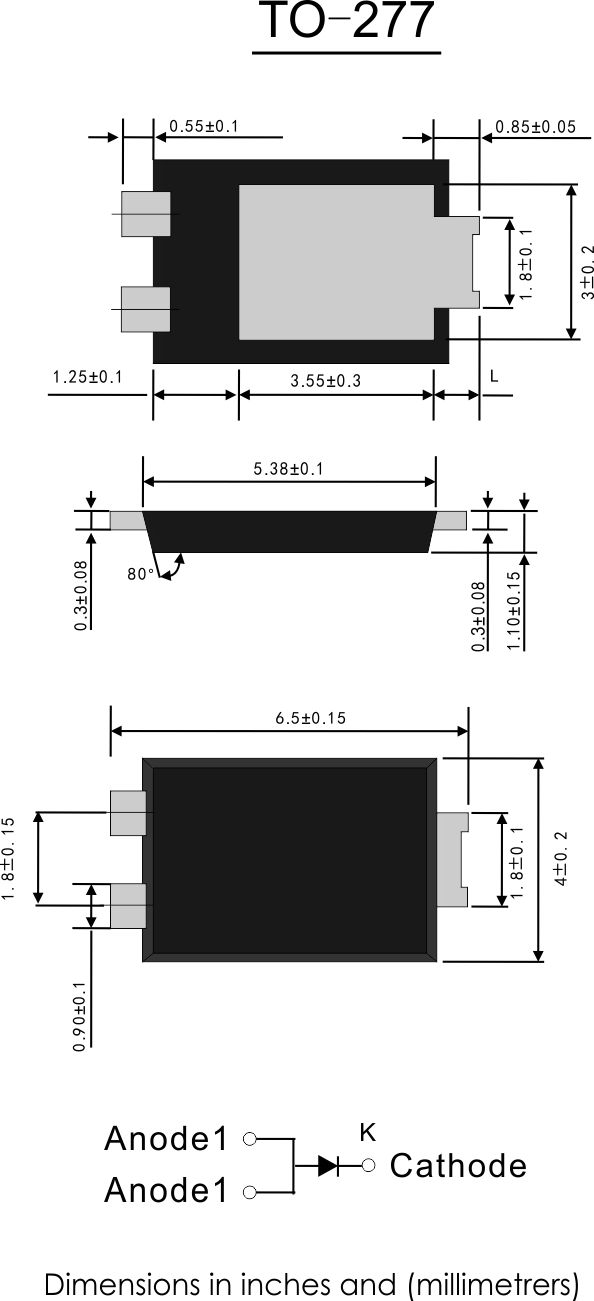

| SP10U50L | 下载 | 10.0 | 50 | 150 | 0.47 | 10.0 | 200 | TO-277 | |
| SP10U60L | 下载 | 10.0 | 60 | 150 | 0.55 | 10.0 | 100 | TO-277 | |
| SP10U60SL | 下载 | 10.0 | 60 | 150 | 0.52 | 10.0 | 150 | TO-277 | |
| SP10U80L | 下载 | 10.0 | 80 | 150 | 0.65 | 10.0 | 100 | TO-277 | |
| SP10U100L | 下载 | 10.0 | 100 | 200 | 0.73 | 10.0 | 50 | TO-277 | |
| SS1010LB | 下载 | 10.0 | 100 | 150 | 0.70 | 10.0 | 100 | SMB | |
| SP10U150L | 下载 | 10.0 | 150 | 150 | 0.88 | 10.0 | 10 | TO-277 | |
| SP10U150SL | 下载 | 10.0 | 150 | 200 | 0.83 | 10.0 | 10 | TO-277 | |
| SP10U200L | 下载 | 10.0 | 200 | 150 | 0.88 | 10.0 | 10 | TO-277 | |
| SS108LC | 下载 | 10.0 | 80 | 200 | 0.60 | 10 | 50 | SMC | |
| SS108SLC | 下载 | 10.0 | 80 | 250 | 0.55 | 10 | 50 | SMC | |
| SS1010SLC | 下载 | 10.0 | 100 | 200 | 0.65 | 10 | 50 | SMC | |
| SP12U100L | 下载 | 12.0 | 100 | 250 | 0.68 | 12.0 | 50 | TO-277 | |

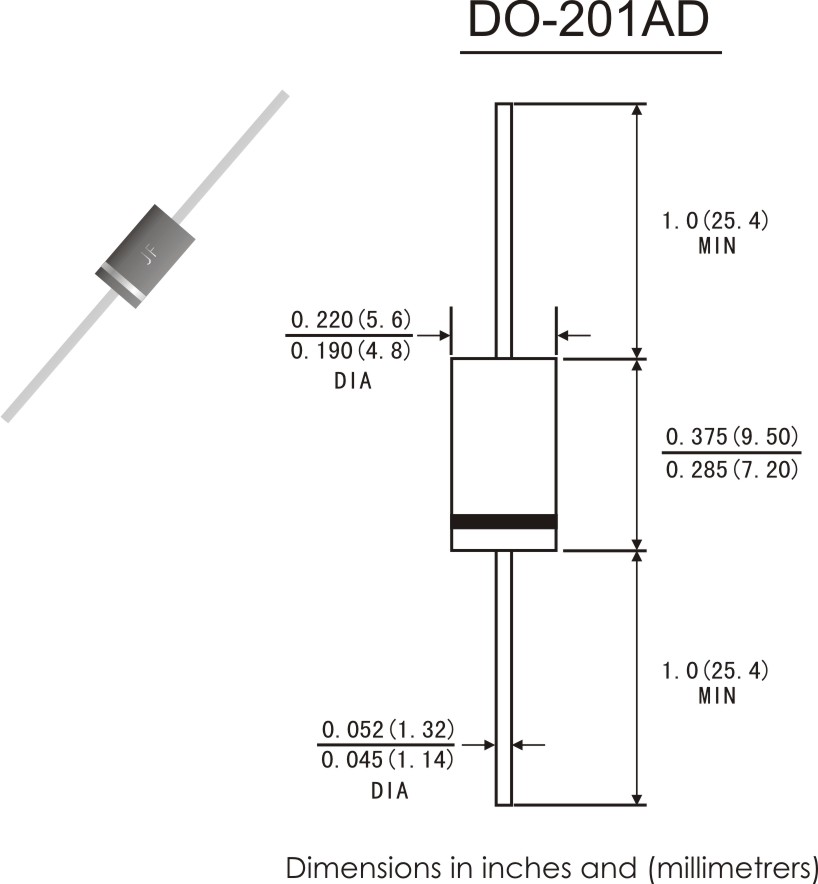

| SR1545L | 下载 | 15.0 | 45 | 150 | 0.52 | 15.0 | 200 | DO-201AD | |
| SR1545LM3 | 下载 | 15.0 | 45 | 200 | 0.55 | 15.0 | 50 | TO-252 | |
| SP15U45L | 下载 | 15.0 | 45 | 250 | 0.50 | 15.0 | 100 | TO-277 | |
| SP1545L | 下载 | 15.0 | 45 | 150 | 0.51 | 15.0 | 200 | TO-277 | |
| SP15U50L | 下载 | 15.0 | 50 | 250 | 0.50 | 15.0 | 100 | TO-277 | |
| SP15U50SL | 下载 | 15.0 | 50 | 250 | 0.48 | 15.0 | 150 | TO-277 | |
| SP15U60L | 下载 | 15.0 | 60 | 180 | 0.58 | 15.0 | 150 | TO-277 |
